You ask, and you shall receive! Two years ago I built our outdoor patio furniture for the Spring One Room Challenge. While I shared a tutorial for our sofas, I never wrote one for our DIY Outdoor Table. To this day I still receive comments and DMs requesting a tutorial, so better late than never! This outdoor dining table is a fairly easy DIY project that will elevate your outdoor space and enhance your outdoor activities! Now, onto the highly requested outdoor table plans! The best part is they are free plans ūüėČ

DIY Outdoor Dining Table Full Tutorial

This post contains affiliate links. For more information, please see my policies.

DIY Outdoor Table

First things first. In order to build our outdoor dining table, you are going to need lumber. When I originally built our furniture, our local hardware store did not carry the 6×6 timbers we used for the table base, so I purchased mine from a local lumber yard. I have since seen 6x6s at Home Depot.

I should also mention that I ordered all of the wood for the outdoor furniture pieces (the two sofas and the dining table) at the same time and had it delivered because a) all that lumber would not fit in my Honda Fit ūüėČ and B) those timbers are pretty heavy. For one dining table you will need the following items to build the table as I did.

All lumber sizes are noted as common sizes in inches x inches x feet.

DIY Patio Table Materials List

2 – 6x6x10 Timbers*
2 – 2x6x8 Boards
3 – 2x8x8 Boards
5 – 2x4x8 Boards
1 – 12in Sliding Miter Saw
1 – Miter Saw Stand (optional)
1pk – #8 2in construction screws
1pk – GRK 5/16in x 5-1/8in Structural Screws
1 – 3/4 in Spade Drill Bit
1 – Impact Driver and Drill **
1 – Impact Driver Extender
1 – Kreg Jig
1 – Kreg Jig Clamp
1pk – Kreg Jig 2.5 inch Screws
2 – Extra Clamps (optional)
1 – Belt Sander
1 – Orbital Sander
1gal – PPG Timeless Semi Solid Exterior Stain in Chestnut Brown
1gal – Water Based Spar Urethane Satin Finish
1- 48 inch Level
1 – Tape Measure
1 – Safety Glasses
1 – Work Gloves
4-6 Dining Chairs

Know before you build

If you are not an experienced builder you may not be that familiar with wood sizing. Common wood sizes such as a 2×4 are not actually 2 inches by 4 inches, they are 1.5 inches by 3.5 inches. If you choose to build the table with different dimensions, you will need to account for this. Always double check the actual dimensions of your lumber before making cuts.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Note, this picture is all the wood I used to build the dining table and both sofas. I originally wanted to build an outdoor bench as well but decided against it. I ordered sizes that minimized the waste based on this. If you choose to build more than just the table, it might be more cost effective to purchase different lengths.

*I used smooth sawn Douglas fir timbers. Mine were not pressure-treated lumber, however, I do recommend using pressure treated wood. Pressure treating protects against termites, fungi and rot. Despite the fact that ours were not pressure treated, our wooden furniture has held up well.

**Make sure both your impact driver and your drill each have fully charged batteries and have an extra standing by if possible. You will need them.

Step 1
Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial



First thing, cut the 6x6s to size. You will need to cut the 6x6s into 10 pieces, each 20 inches long. These will be your table legs. I used our 12 inch miter saw to cut these but the blade is not large enough to cut all the way through in one pass. So if you are in the same boat, you will have to rotate the wood until the blade goes all the way through.

Below is a video clip of how we cut ours. This will not produce a perfect cut, however, you will be sanding them a lot if you want to achieve the same look I have.

You will not be able to make this cut with a circular saw unless you have access to a timber circular saw. A circular saw will come close, depending on the size of your blade, but even after rotating you will still have a little bit leftover that you will need to cut with a hand saw or reciprocating saw.

<div
data-shortcode=”mv_video”
data-attributes='{DQUOTEaspectRatioDQUOTE:DQUOTEtrueDQUOTE,DQUOTEdoNotAutoplayNorOptimizePlacementDQUOTE:false,DQUOTEdoNotOptimizePlacementDQUOTE:false,DQUOTEjsonLdDQUOTE:DQUOTEtrueDQUOTE,DQUOTEkeyDQUOTE:DQUOTEuyqoojh0uuureuql55u3DQUOTE,DQUOTEstickyDQUOTE:false,DQUOTEthumbnailDQUOTE:DQUOTEhttps://mediavine-res.cloudinary.com/video/upload/uyqoojh0uuureuql55u3.jpgDQUOTE,DQUOTEtitleDQUOTE:DQUOTEHow to cut a 6×6 timber with a 12 inch

How to cut a 6×6 timber with a 12 inch

Edit or replace





Step 2

Measure and cut the 2x4s for the table framing. Our dining table is 70 inches long by 40 inches wide. I chose to use slender, metal dining chairs with our table. I HIGHLY suggest you choose your chairs before you decide on your table length and width to make sure they will fit comfortably with your table. Many outdoor chairs are quite bulky and will require more space. If you choose to make your table with different dimensions, you will need to adjust the lengths and amount of wood you will need.

Based on the table size we decided on, I cut two 2x4s to 70 inches long and two 2x4s to 40 inches long, all with mitered corners cut at a 45 degree angle so no cut edges would be seen on the outside edges of the table. I joined the two mitered corners and used the Kreg Jig to drill the holes ensuring none of the screws would be seen once fully assembled.

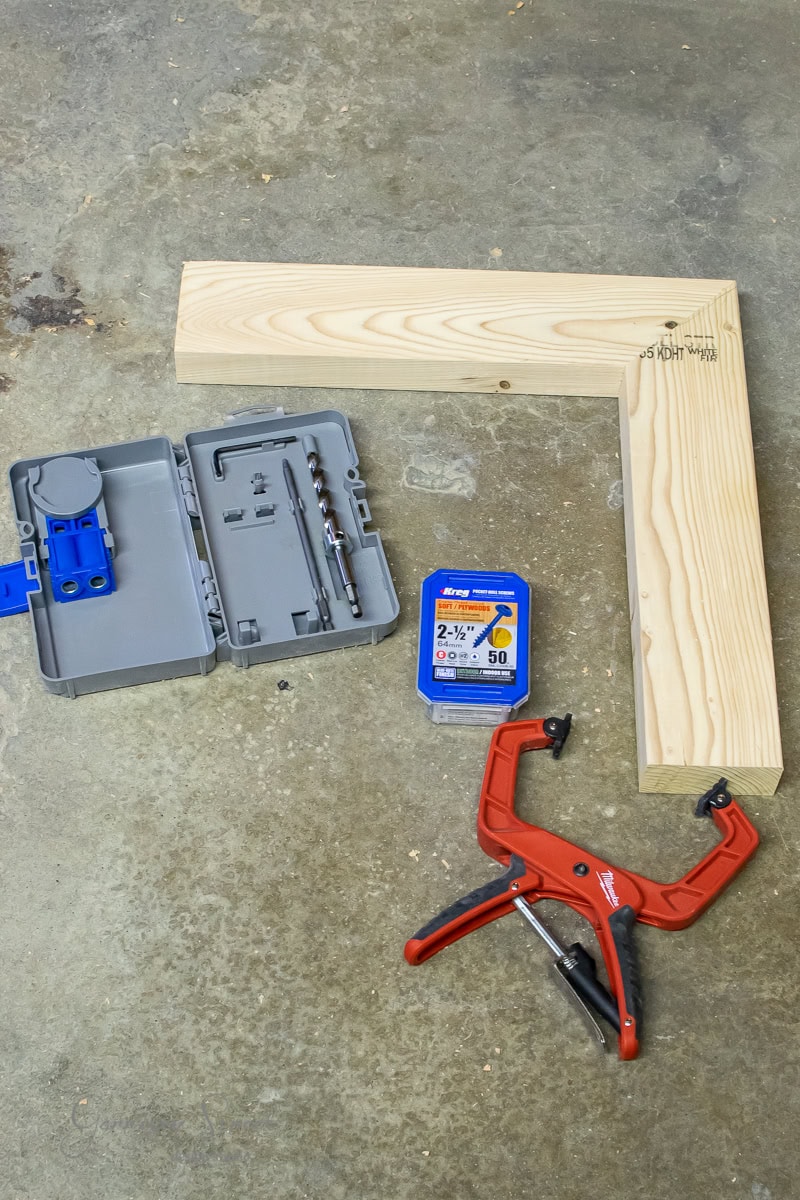

If you have never used a Kreg Jig before, I HIGHLY recommend you practice on some scrap wood before you attempt on your table pieces. I did just that.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

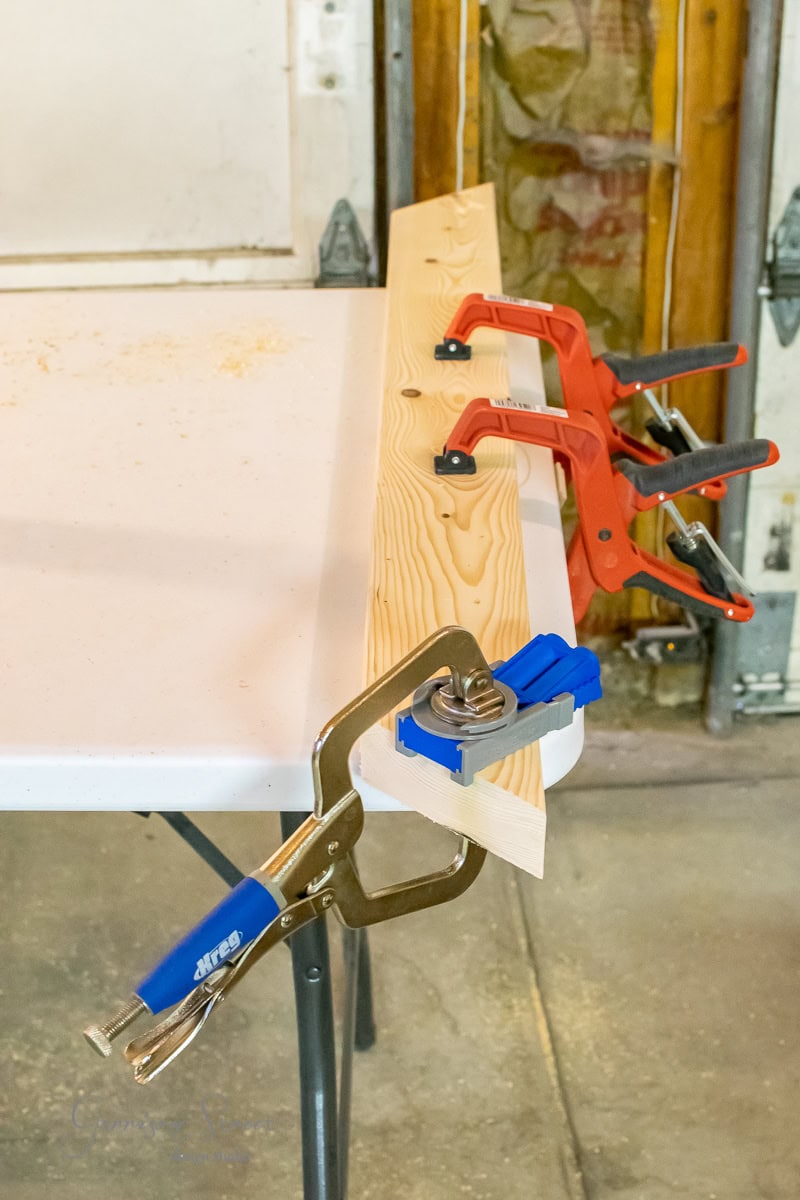

Once I understood how to use the Kreg Jig, I clamped the first 40 inch piece to a table so I could drill the holes.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

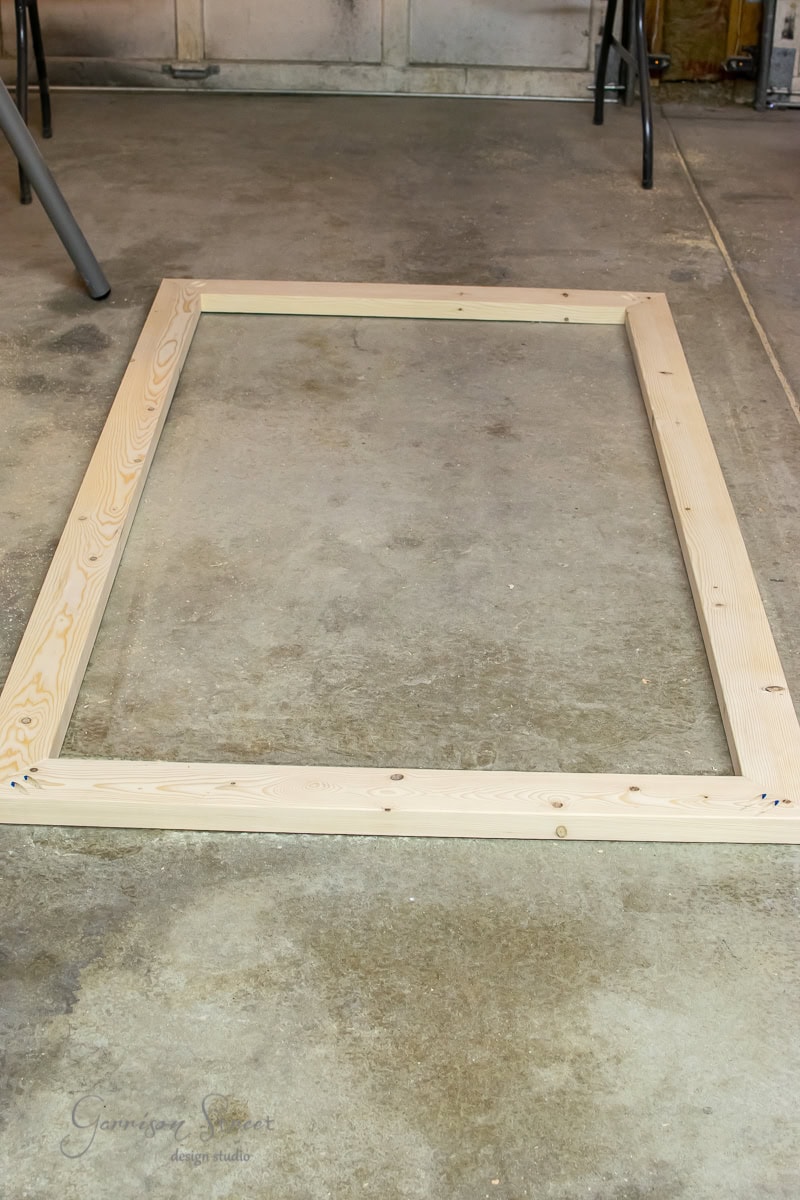

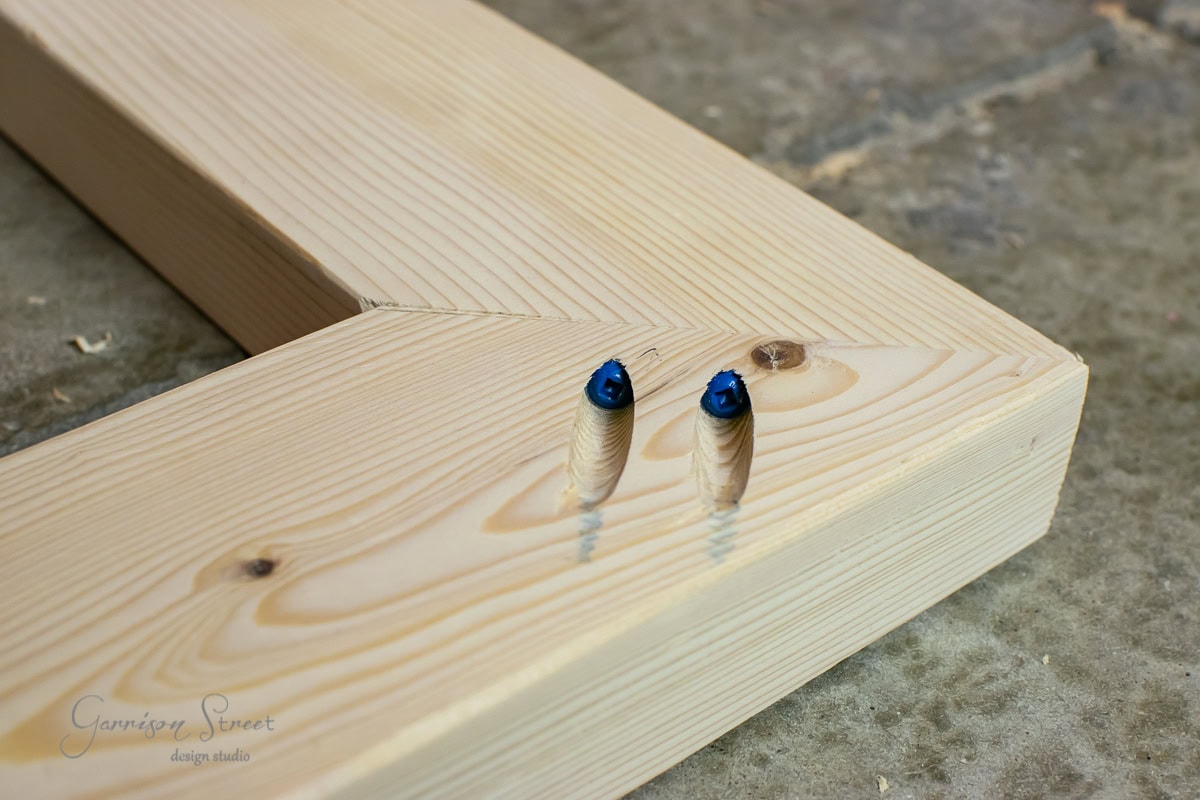

The Kreg Jig creates pocket holes making the construction cleaner and stronger. This part of the frame will not be seen.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Step 3

Cut your table top pieces to size. I used wooden boards for this to keep it simple, but you could also use plywood that is trimmed out or do a herringbone pattern. The choice is yours.

DO NOT do this step before your have assembled your frame. In a perfect world, your table frame is exactly square and all edges are exactly the same measurements. But let’s be honest, this is DIY and things don’t always go perfectly as planned. So save yourself some headache and measure out each piece as you go just in case because once you cut, you can’t add wood back.

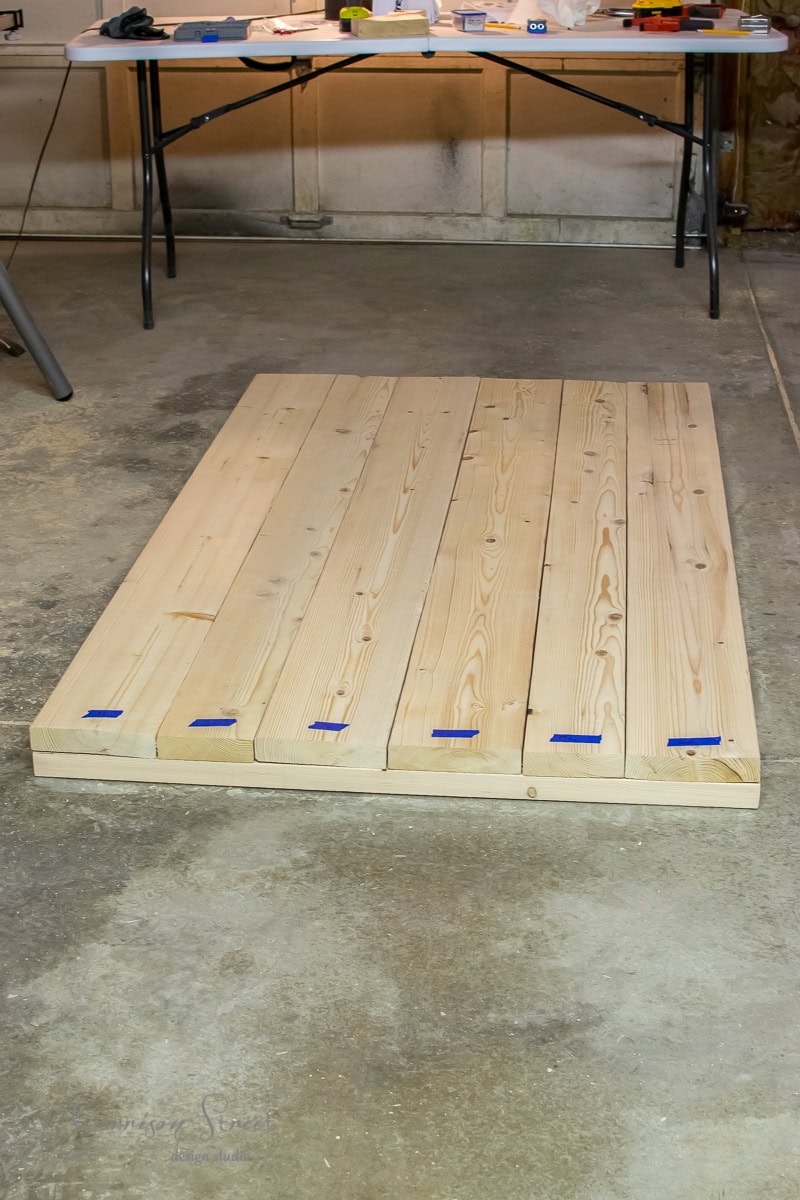

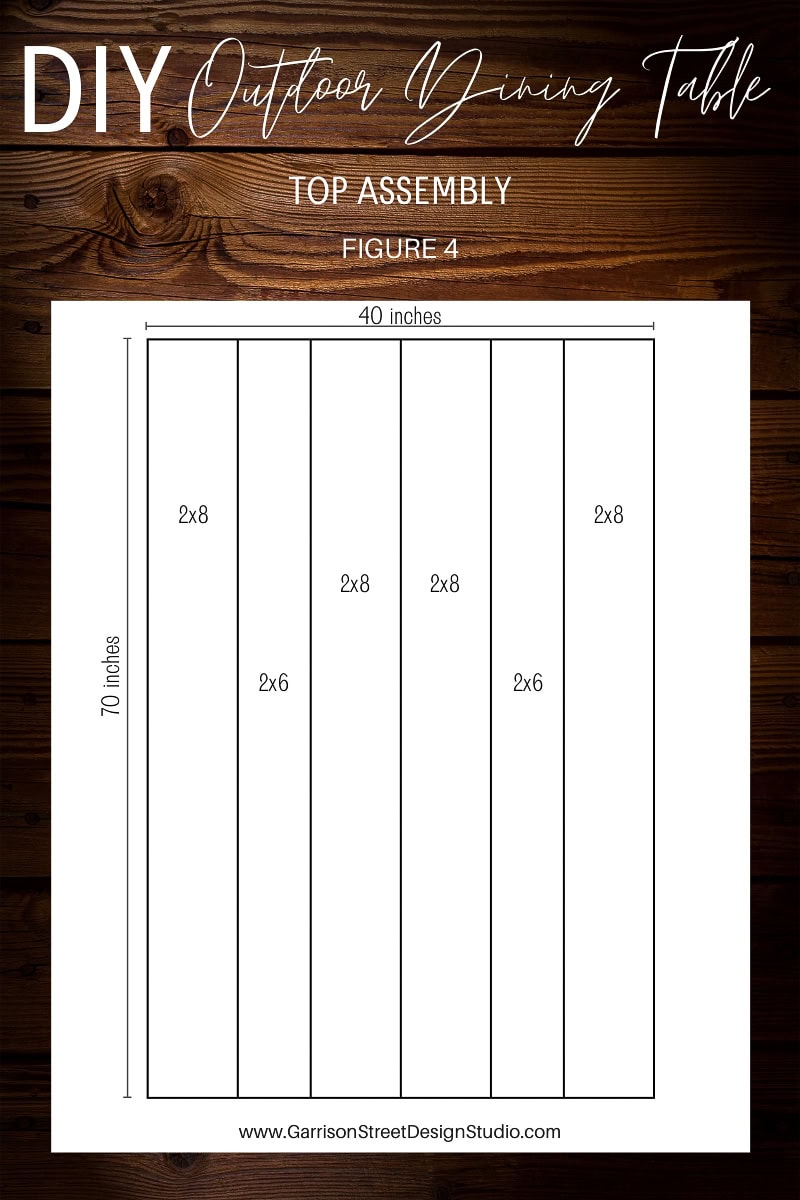

Our table top wood is laid out like this. DO NOT ATTACH THE TOP PIECES TO THE FRAME YET!

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

At this point I would also recommend labeling the order in which you laid out all your table top boards and taking a picture to make sure you do not forget which one went where in case some boards fit better a certain way. You will want each piece to be a straight board.

*NOTE – When I originally built our table I did not plane the table top pieces because I do not own a planer. But before I re-stained the table a few weeks ago, a friend planed the top pieces for me. This does help them to be more flat since the wood you buy at a store might have some bowing. I did originally buy the wood at a lumber yard which I think tends to have higher quality wood with less warped and bowed pieces. However, after two years out in the elements we did have some bowing and warping. I do cover the table top in the winter with a tarp though because we get a lot of snow.

Step 4

Cut your frame supports. These will ultimately be what attaches your legs (the stacks of 6x6s) to the frame. Use two scrap 6x6s as stand ins for your table legs. Measure 7.5 inches from the inside frame edge and place your scrap 6×6. Measure the width between the inside of the frame on either side of the 6×6. This should be about 33 inches, but measure before you cut because these should be a tight fit. You will attach these in a later step.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Step 5

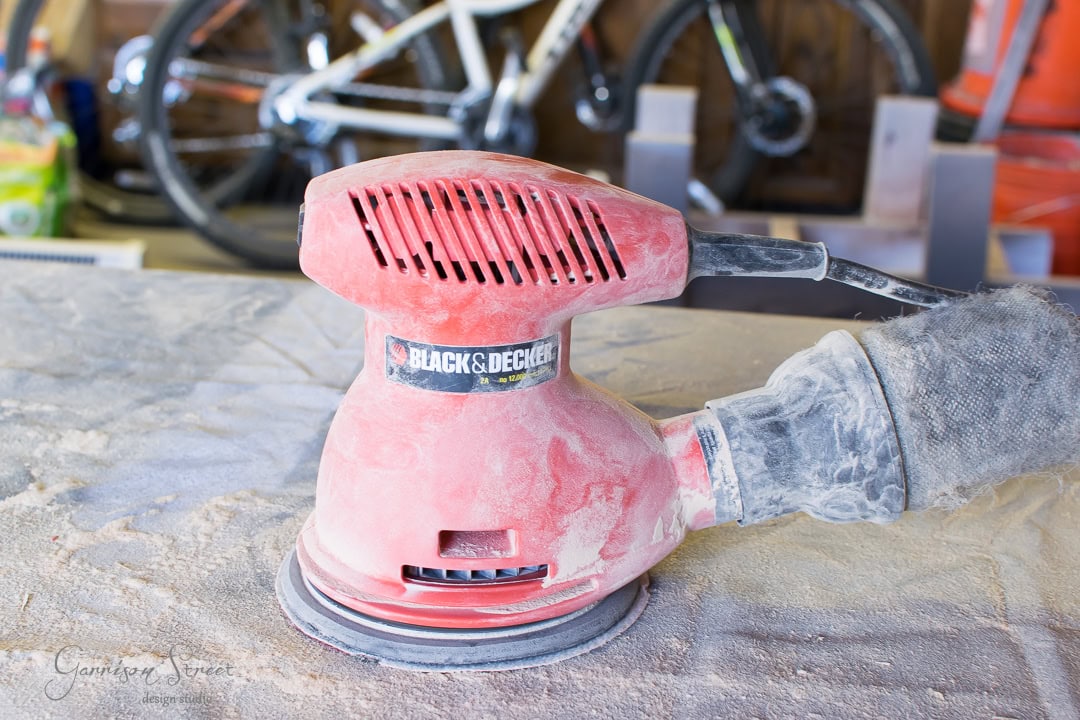

Sand all the wood smooth. I used my orbital sander on the flat surfaces of the timbers, 2x4s, 2x6s and 2x8s. If you have access to a planer, you will not need to do as much sanding.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Then, I sanded all the edges of the timbers with a belt sander to create a bevel.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

I am not going to lie, this part was far from fun but gave the pieces a lot more character in my opinion. If you have never used a belt sander before I highly recommend you practice on some scrap wood first. They are pretty powerful and can damage your wood quickly if you are not careful.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Step 6
Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

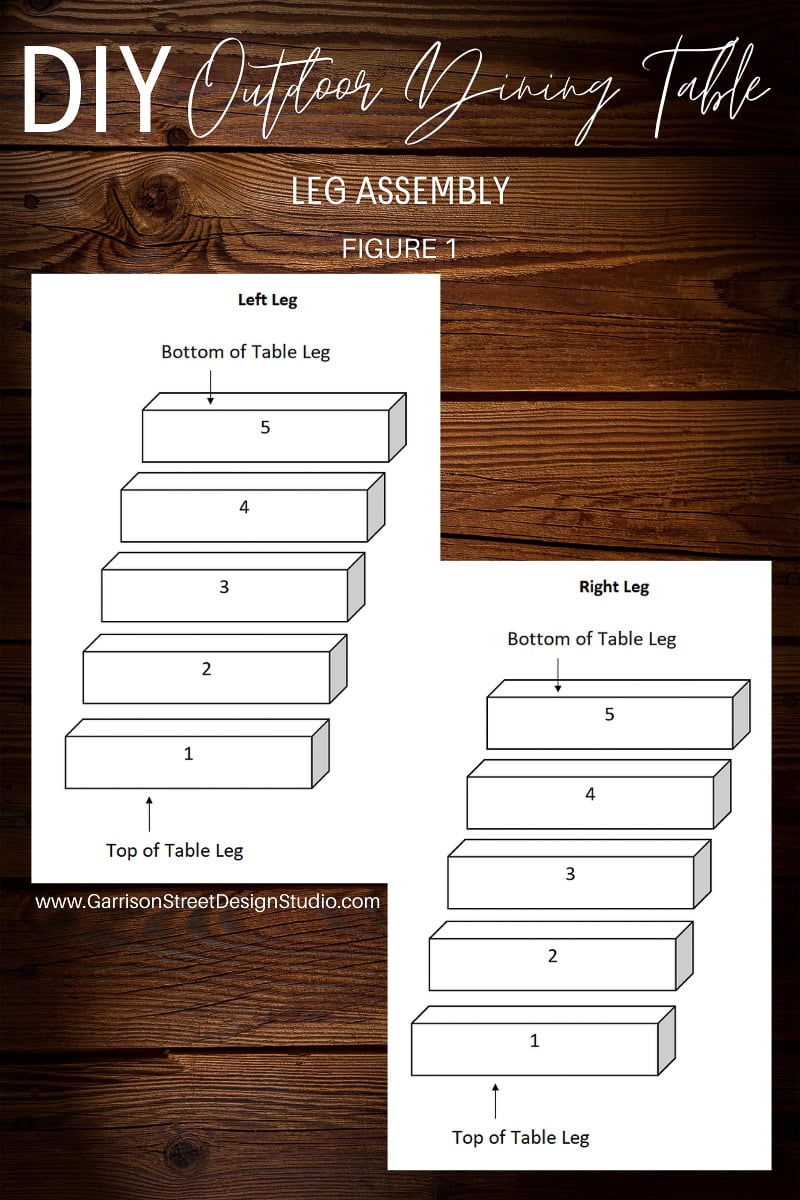

Attaching your timbers for the table legs. This part is a little tricky, so pay attention. I attached the timbers for the table legs with screws, but before you drill any holes, determine the orientation you want for your wood. Meaning, if not all of your pieces look the same on all sides or have a blemish you don’t want seen, stack them up the way you want to see them. Then when you are satisfied, flip each piece upside down and number them on the bottom so you remember the order.



Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

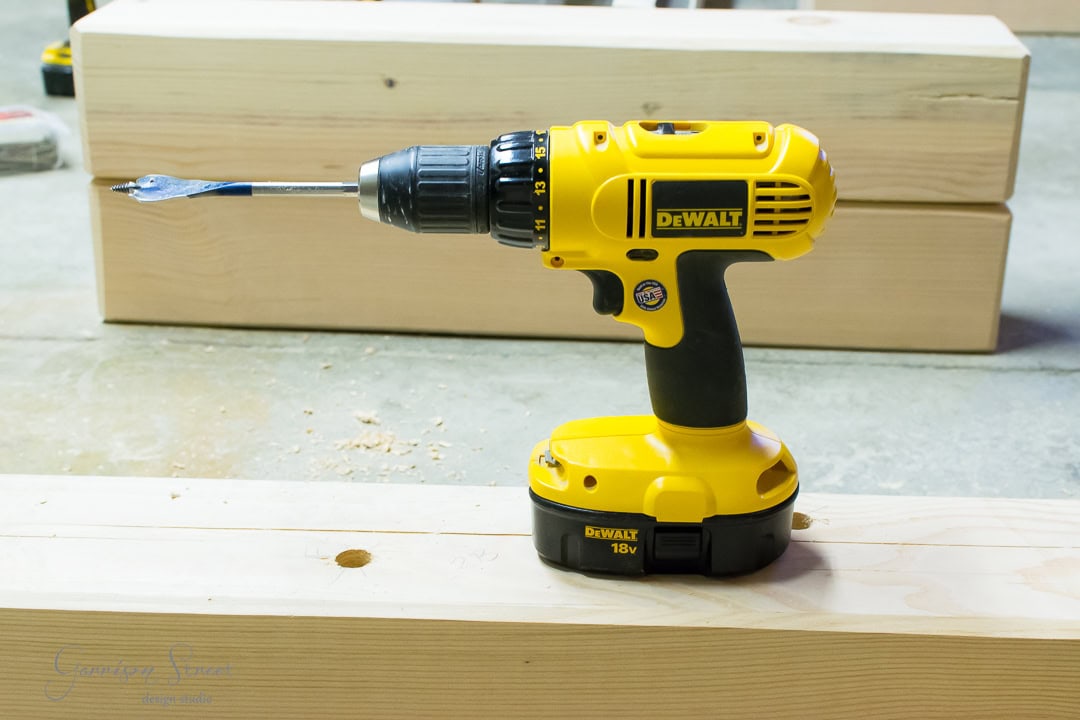

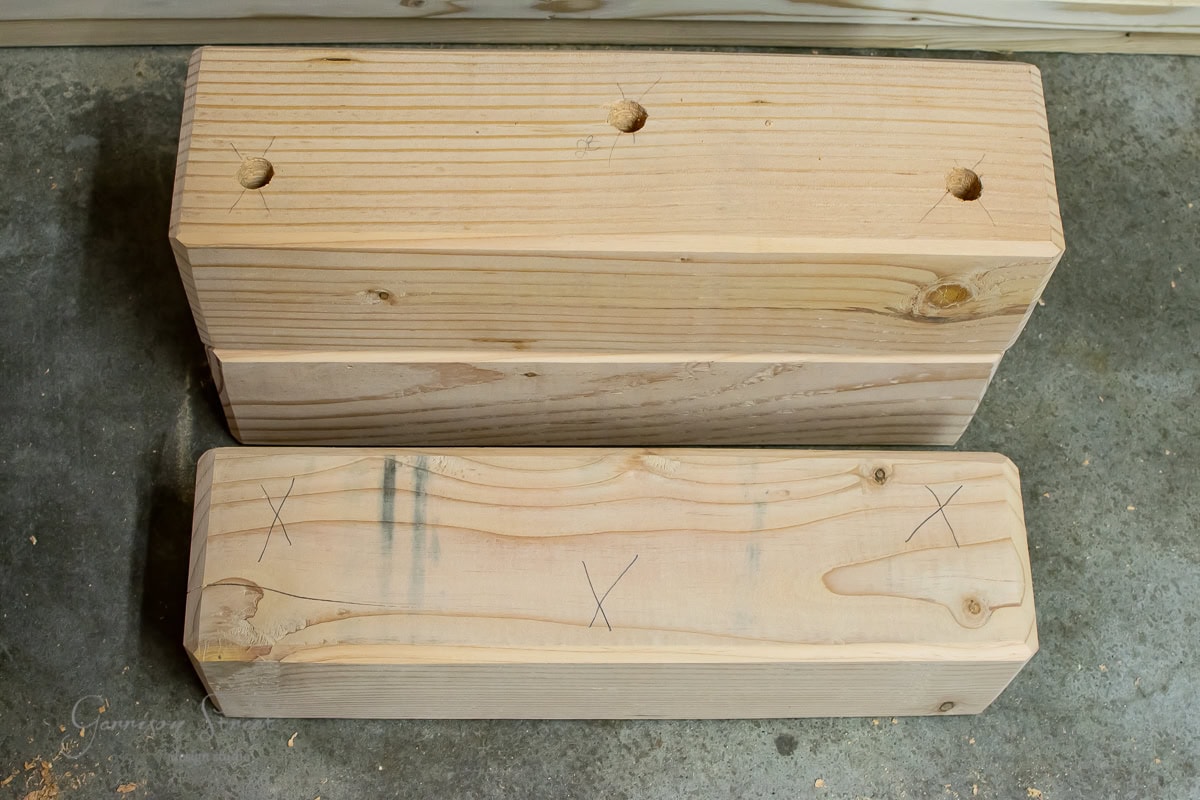

You will be drilling pilot holes to attach the pieces from the bottom side of each block. This way none of the screws or holes will be seen when fully assembled. To begin, use the 3/4 inch spade drill bit to drill 3 staggered holes into block two about 3 inches deep (I actually measured mine every time so they would be the same). Remember, these are all upside down right now so you are drilling into the bottom of piece 2.

Word of caution. These timbers are pretty heavy duty and take some serious force to drill into. Wear gloves and hold onto your drill tight so it doesn’t pull you unexpectedly or swing around and hit you. As I mentioned above, you will need a fully charged battery for your drill as this drains the battery pretty quick.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Now stack block two (still upside down) onto block one (also upside down). Make sure all edges are lined up and it is positioned to your liking. Then use the GRK screws to attach the two pieces. Since the holes are drilled 3 inches deep, your screw will go through block two into block one securing them together.

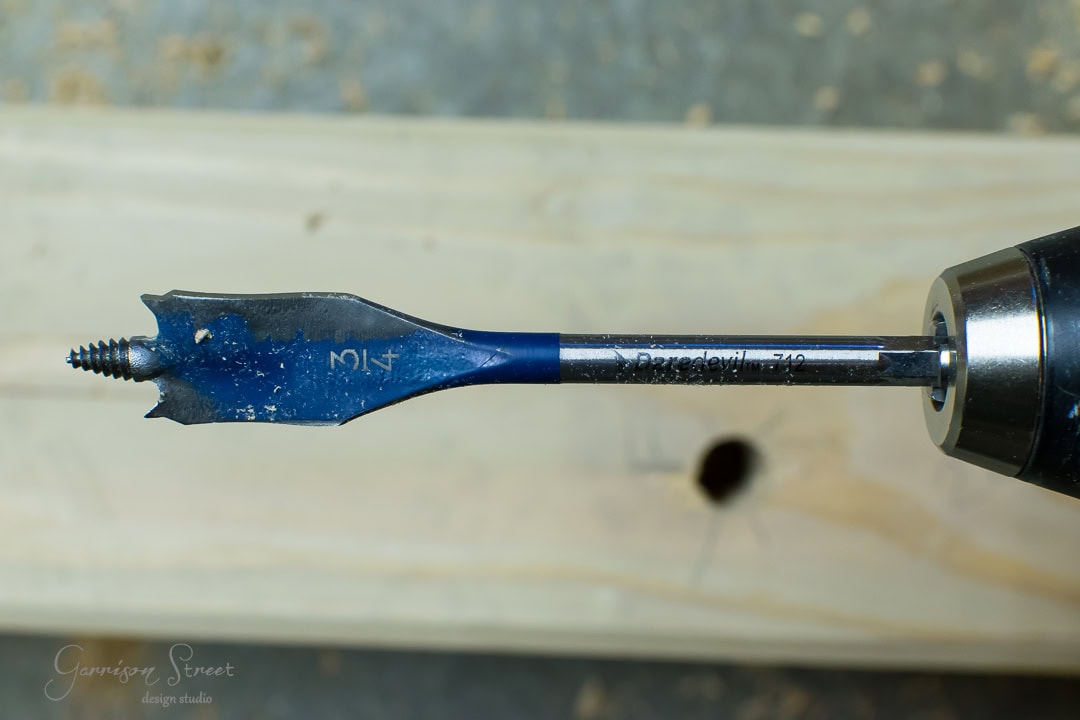

Note, if you choose to use different screws to attach the blocks, you may have to drill different size holes.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

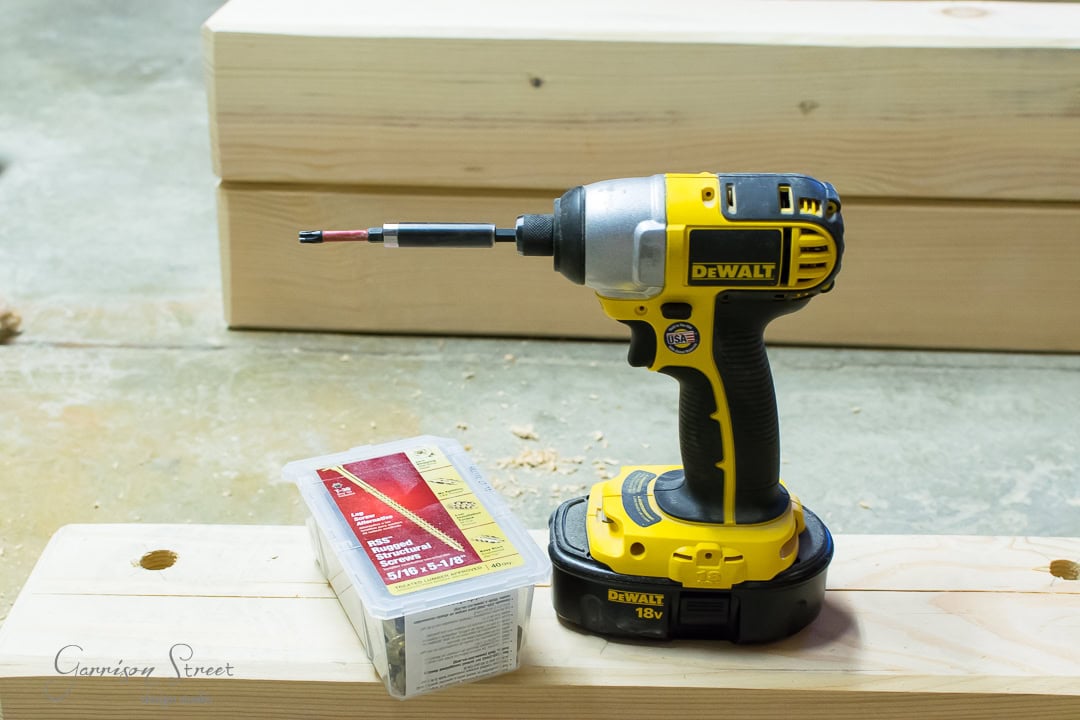

I found the impact driver to work best for this part since you are driving the screw through 5 1/8 inches of wood, about 2 1/2 inches on each block. This is why you will need an extender for your driver.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

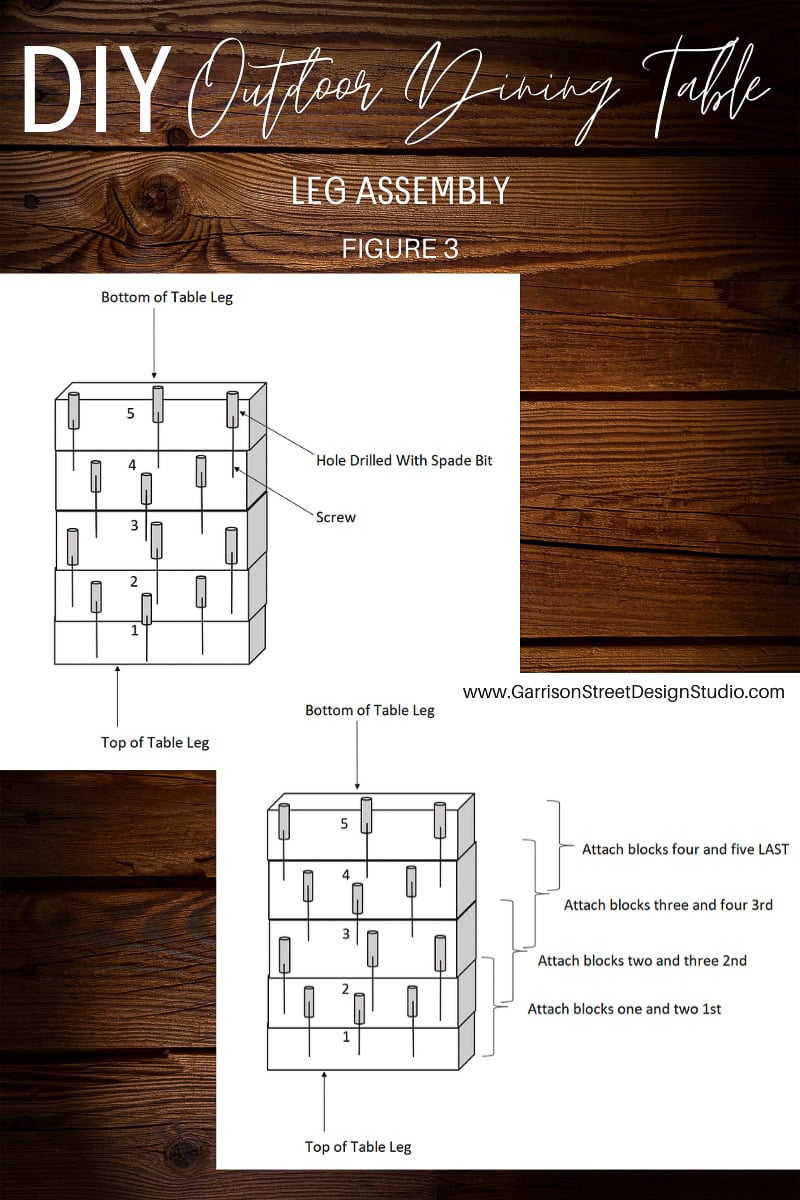

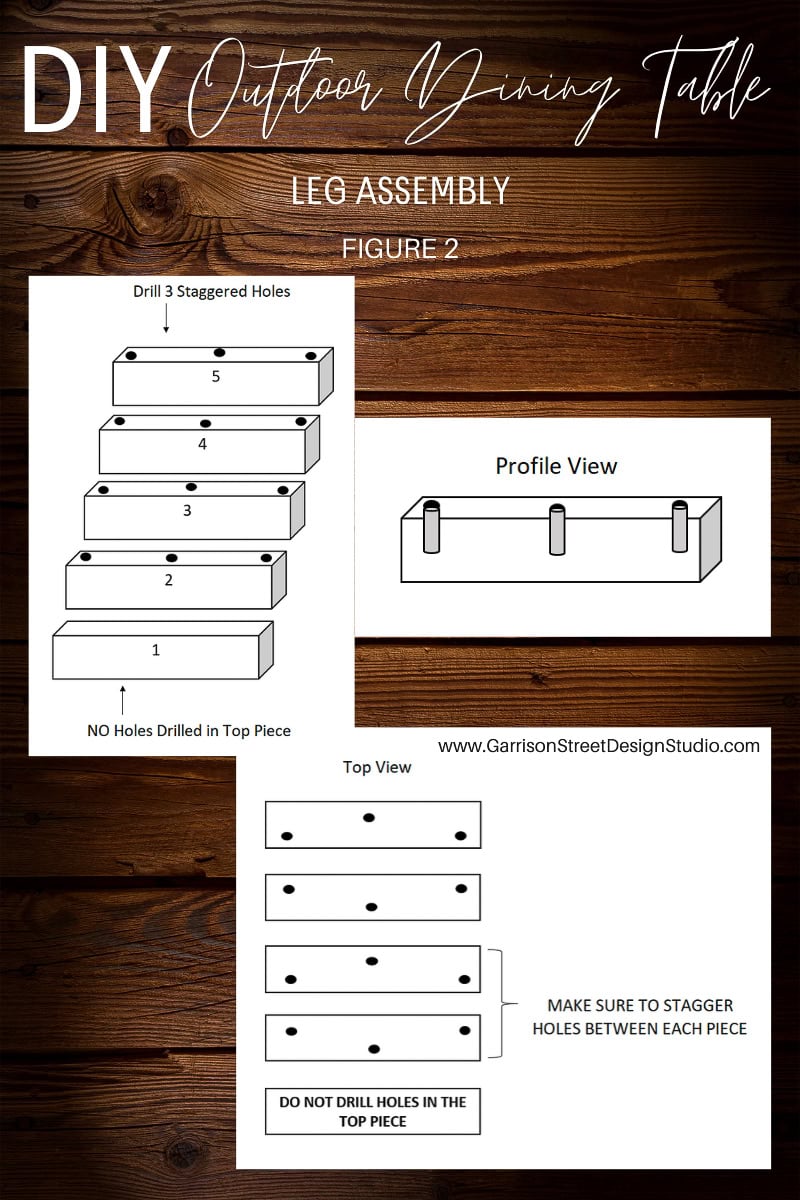

From a diagram perspective, this is what you are ultimately doing.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

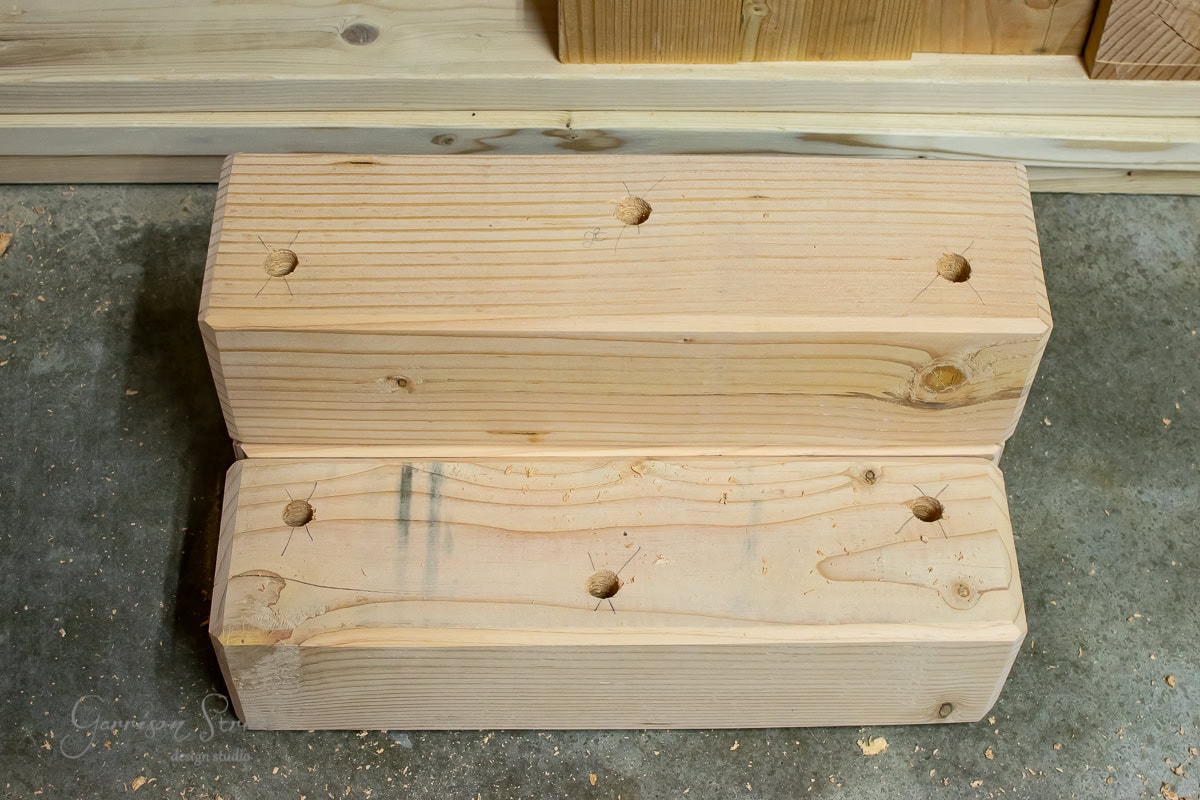

Once you have attached block two to block one, drill your holes in block three making sure to stagger them so they DO NOT line up with the holes you drilled in block two. To avoid confusion, I only drilled holes into one block at a time.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

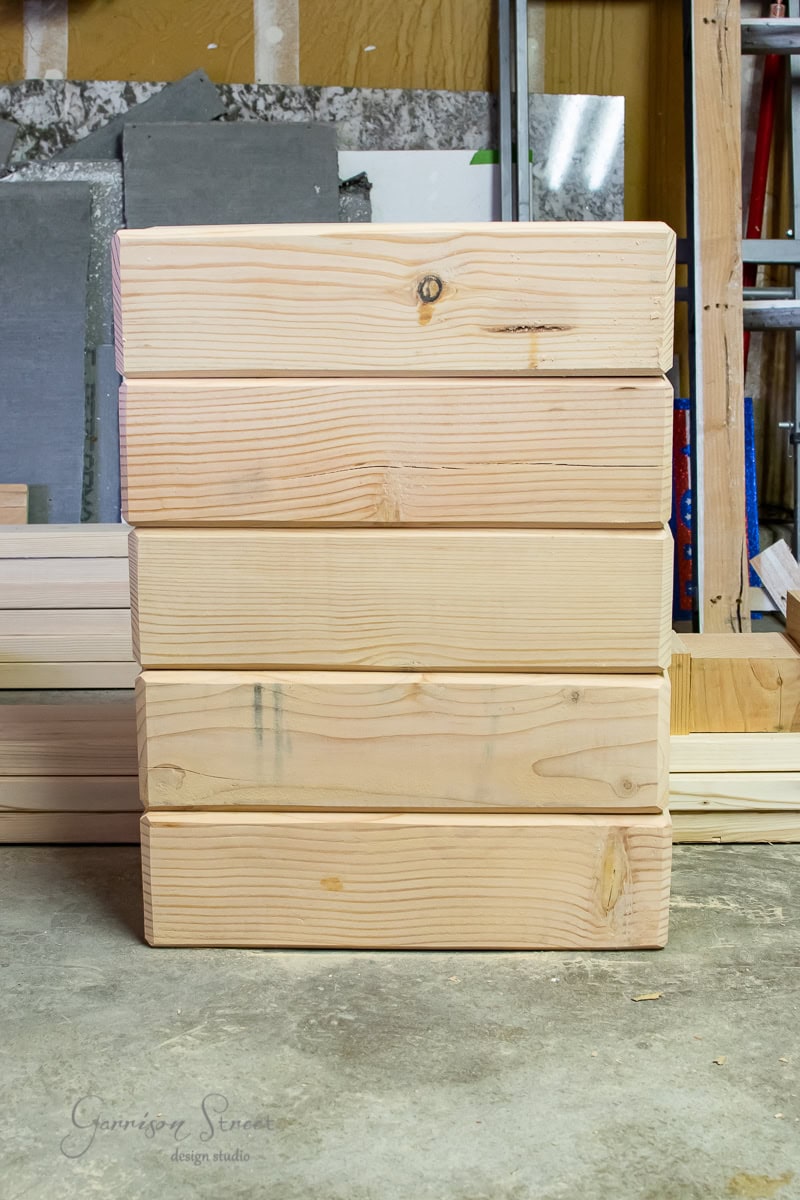

Once you have drilled the holes, stack block three on top of block two and use the screws to attach them as you did above. Repeat with remaining blocks four and five.

Once all the blocks are attached you can flip them over and repeat for the second table leg.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Step 7

Stain all the wood. I originally used this exterior deck stain to seal and stain the wood. After two summers, I re-stained the table a few weeks ago with the leftover stain. I also chose to do a coat of water based Spar Urethane on it this time.

The stain I originally used held up ok, but was definitely faded and had some water spots from winter so I felt like a little extra protection wouldn’t hurt. Both the stain and water based urethane clean up with just soap and water. A HUGE plus in my book.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

I used the stain version of my favorite brush to apply the stain. And I used Dawn dish soap and a paint brush comb to clean my brush when I was done. This is my go to clean up method! Although this stain was not super smelly, I stained the pieces in the garage on some folding tables I had in the basement.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

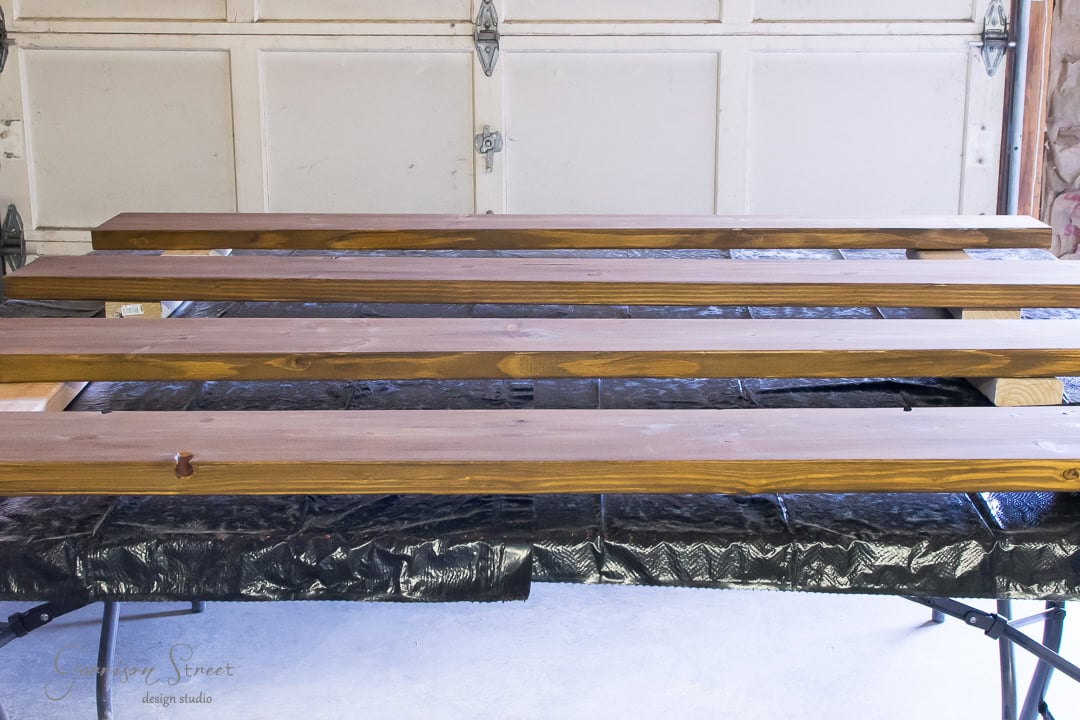

I applied one liberal coat to all sides and allowed 24 hrs of dry time on each side, then I gave everything a coat of spar urethane. Note: The above picture is from when I stained the sofas. You will have two stacks of five blocks not four.

Step 8

Assembly. Note, this table is VERY heavy! The best way to assemble is to assemble where it will sit permanently. I assembled our table in place on the back patio.

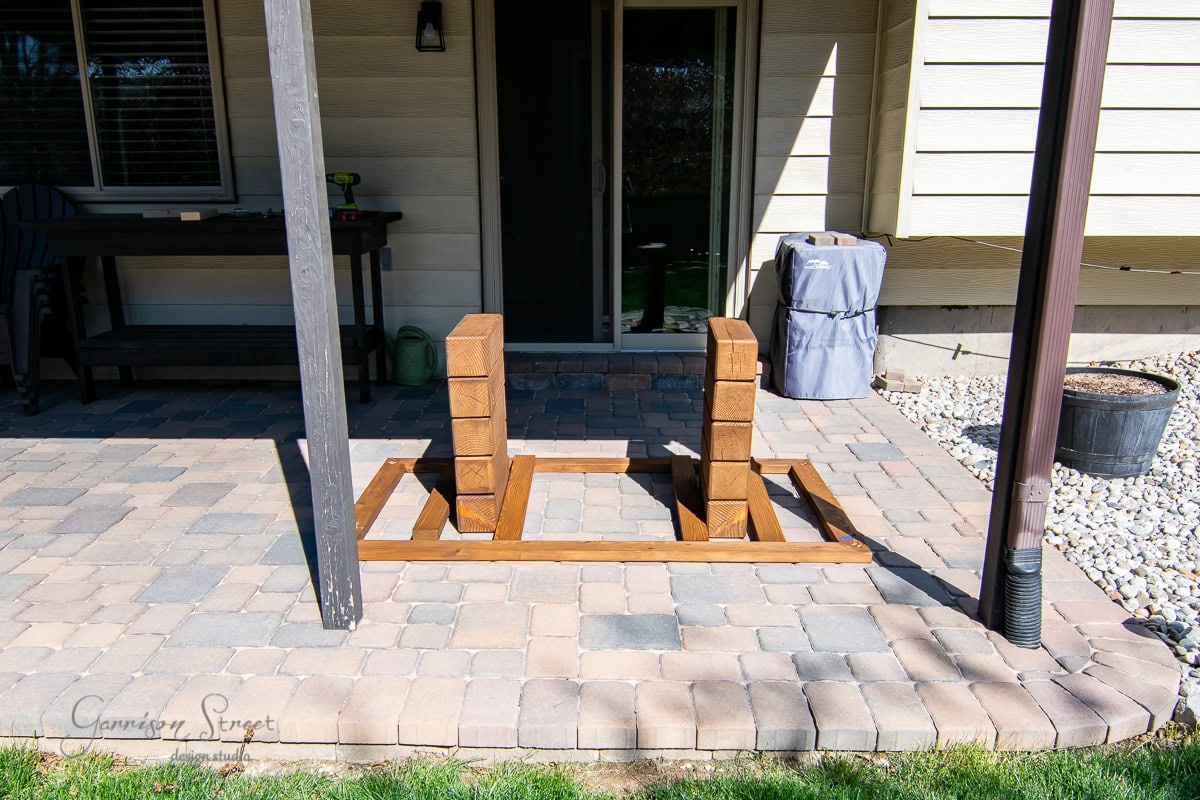

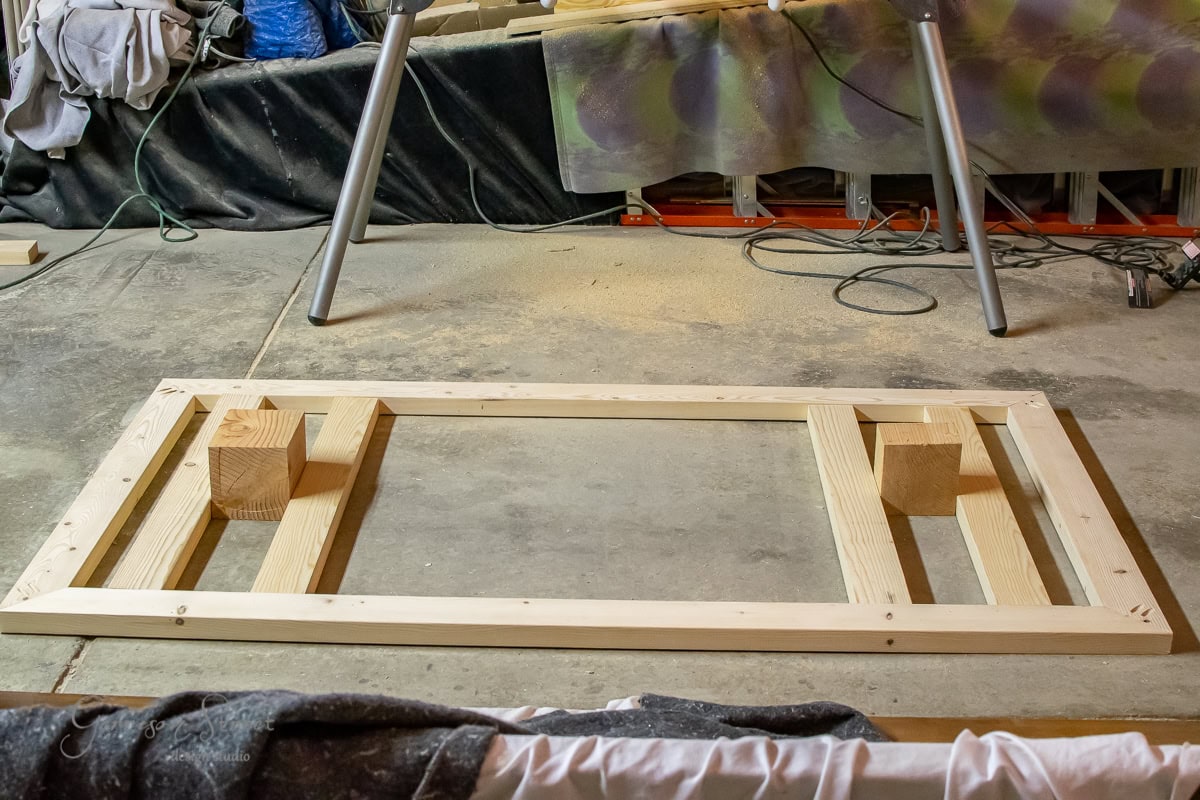

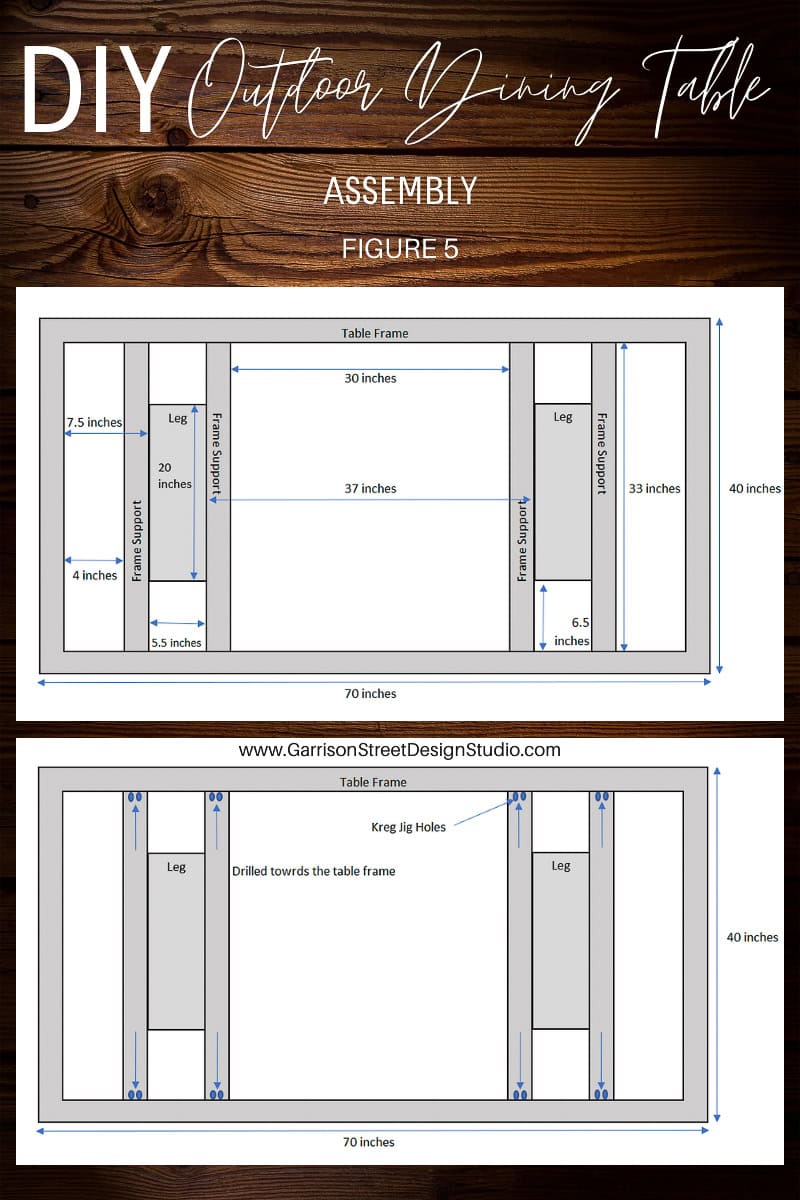

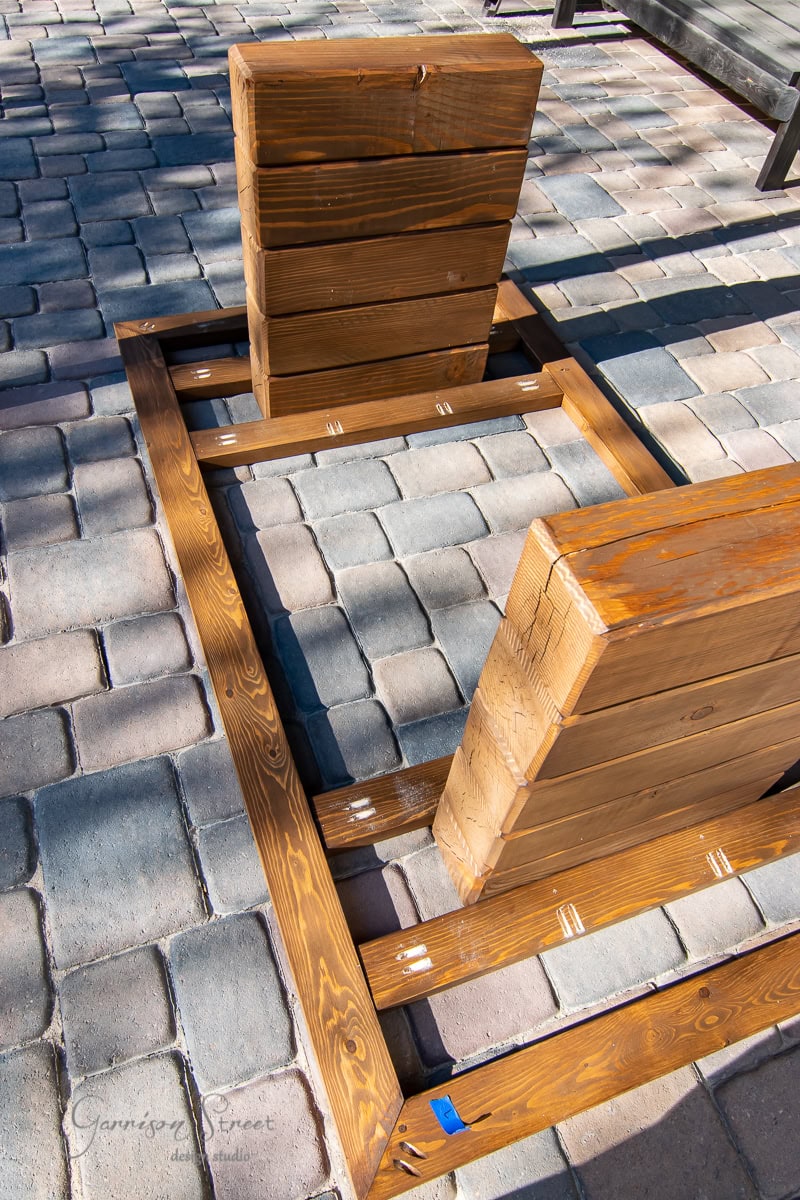

Start by laying out the table legs. Mine are 37 inches apart. Then place the table frame around the legs leaving 7.5 inches between the frame and the outside edge of the table leg.

You will also need to measure the distance between the ends of each leg and the table frame to make sure each leg is in the same position. Mine are 6.5 inches from the inside edge of the frame.

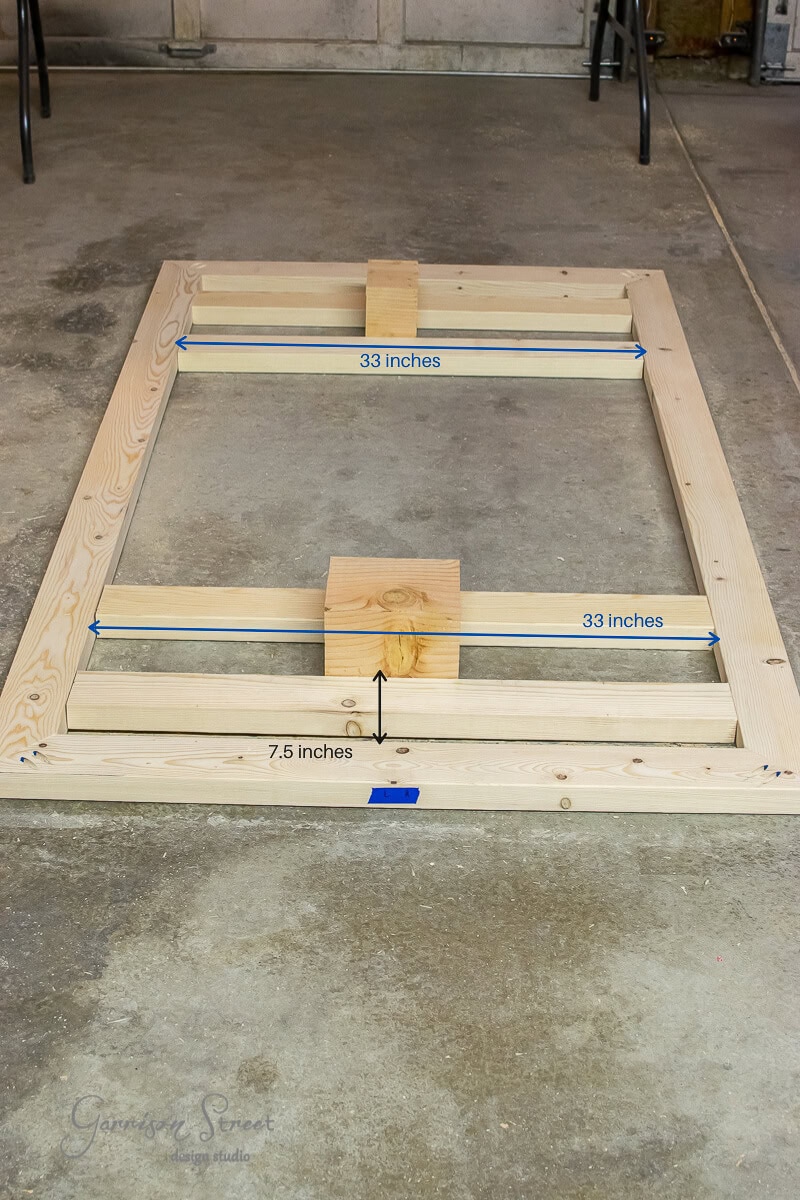

Once all the measurements are equal, add the frame supports you cut in step four. Position them tight around the legs.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

To attach the center support to the frame, use the Kreg Jig to drill two holes at each end of the support into the frame. Do not attach yet.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Drill two additional sets of holes on the sides of each support that will attach to the legs. When you are finished drilling, each support board will have eight holes drilled.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

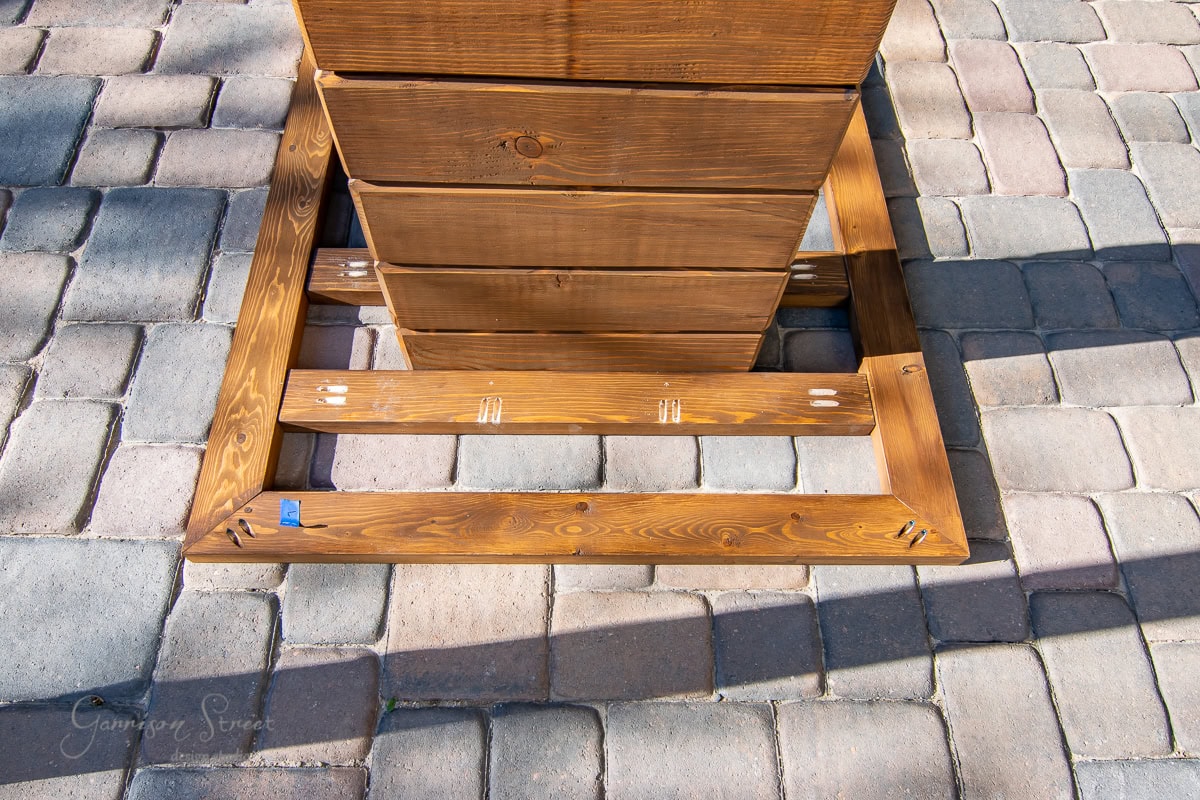

Now attach all four of the supports to the table frame first with the 2.5 inch pocket hole screws.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

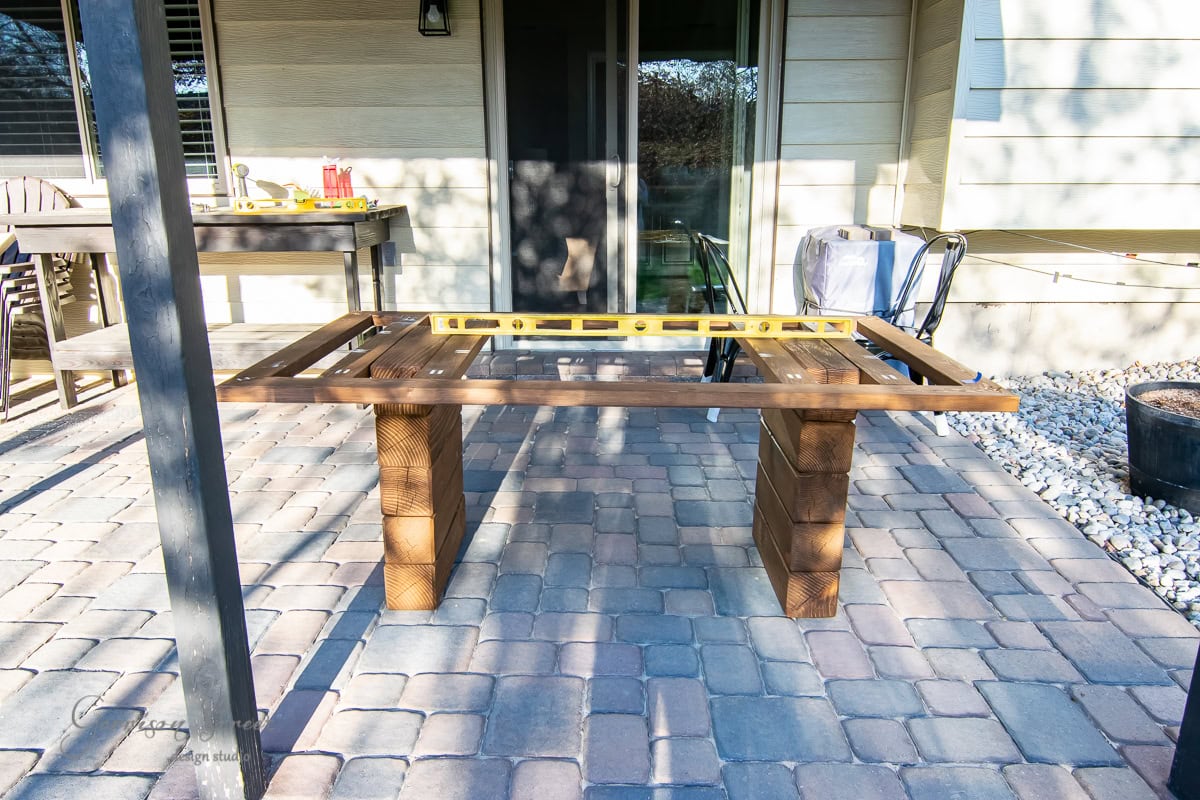

Once all four are attached, raise the frame up to the top of the table legs. The frame should be flush with the top timber. You will need help for this part. My mom and I held the frame in place while Barry made sure it was level and attached the supports to the table legs.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

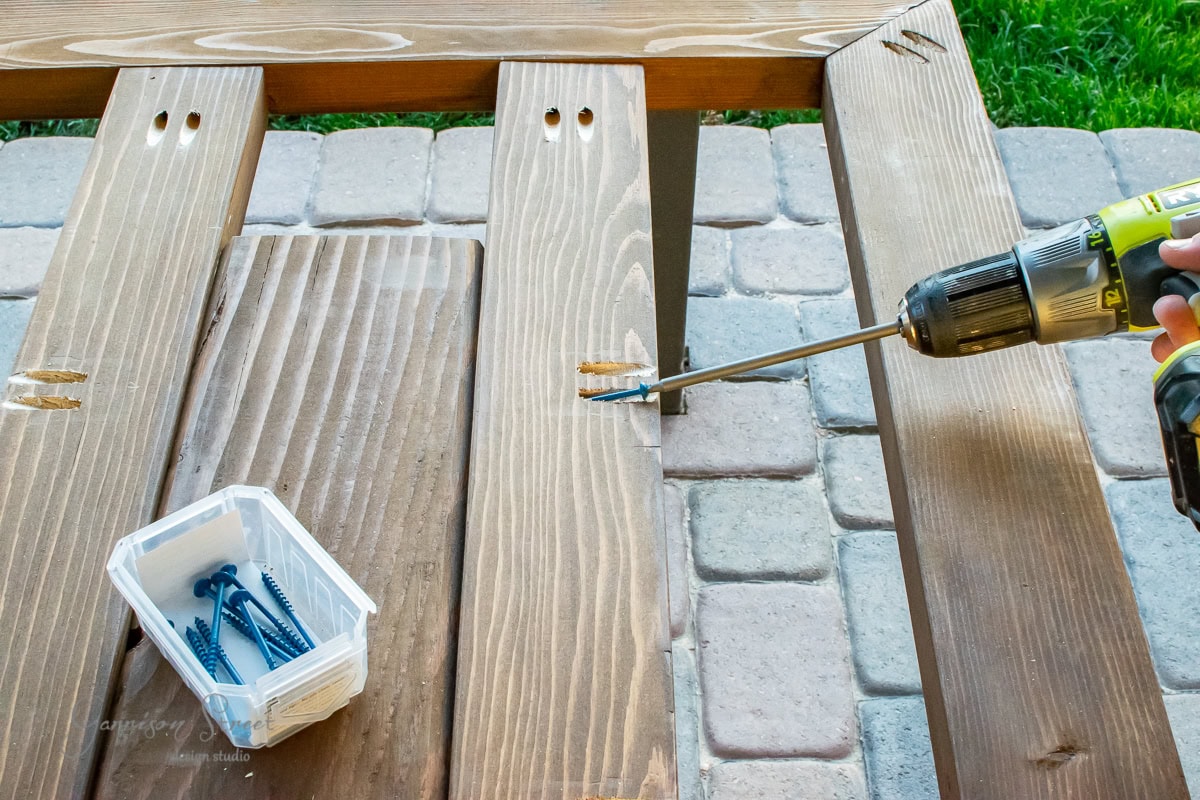

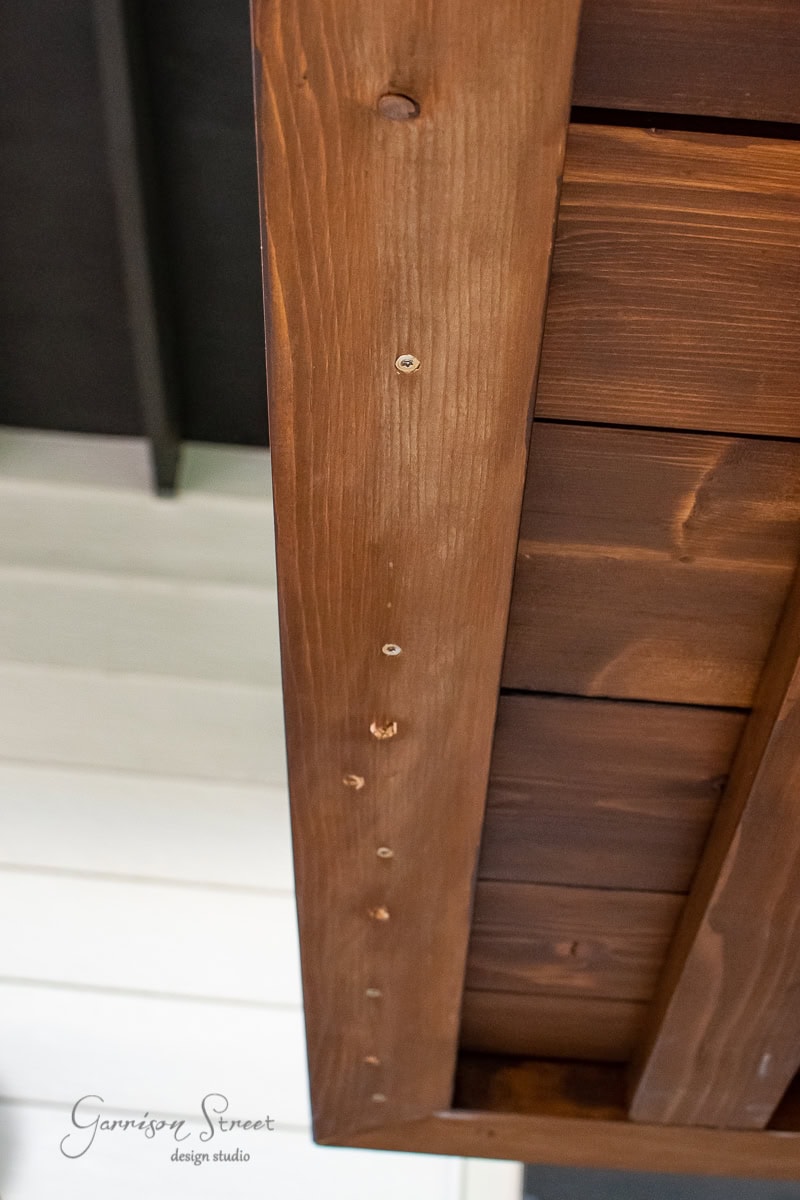

Once all the supports are attached to the table legs in the center of the table, you can attach your table top pieces. I used 2 inch construction screws to attach the table top boards which were screwed into the frame from underneath the table so no screws would be seen.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

You could also use deck screws or outdoor screws, I just prefer star heads because they don’t strip out. I only added screws to each end, but you can add more if needed, especially if you have really long pieces for your table top.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Step 9

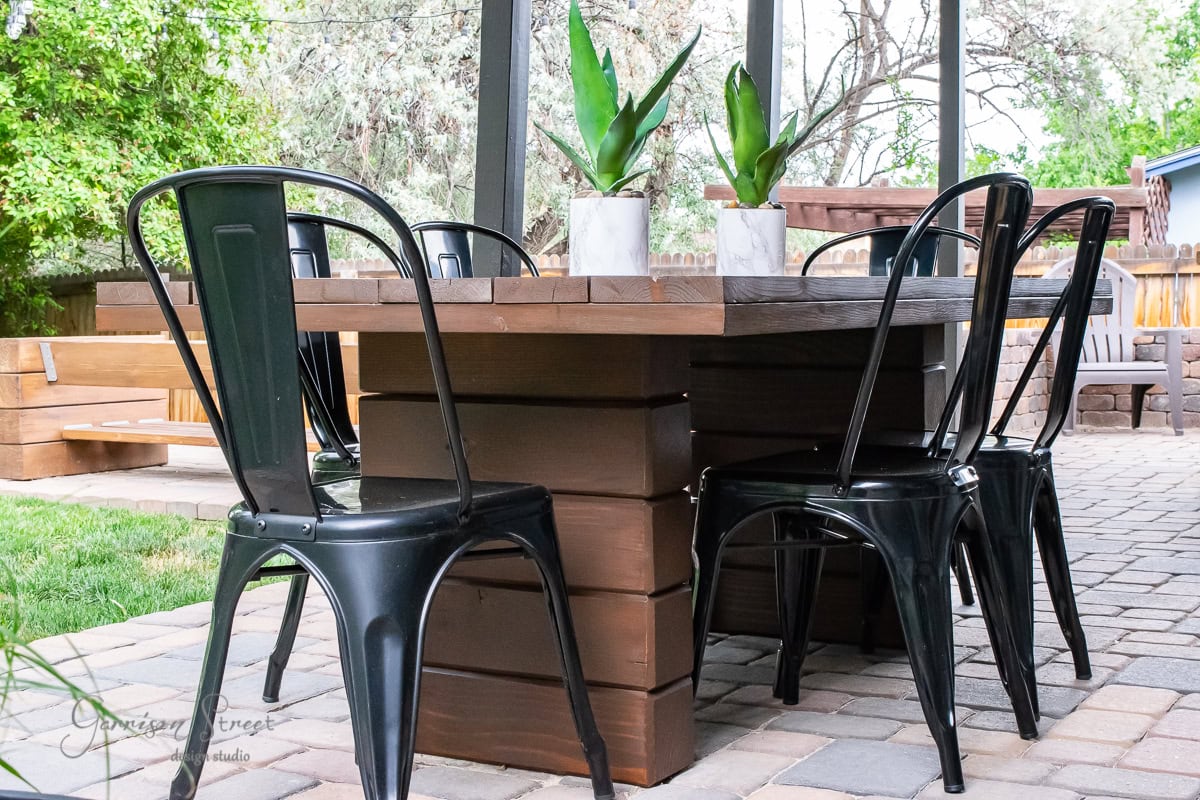

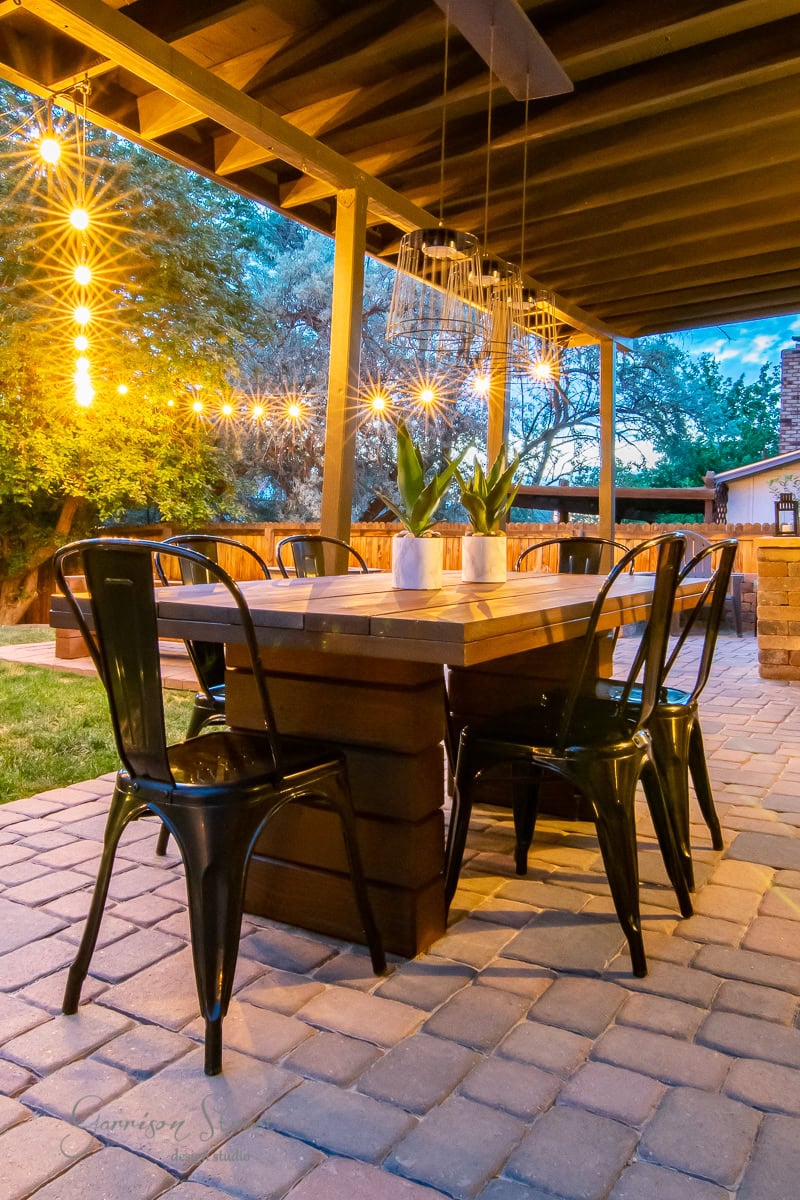

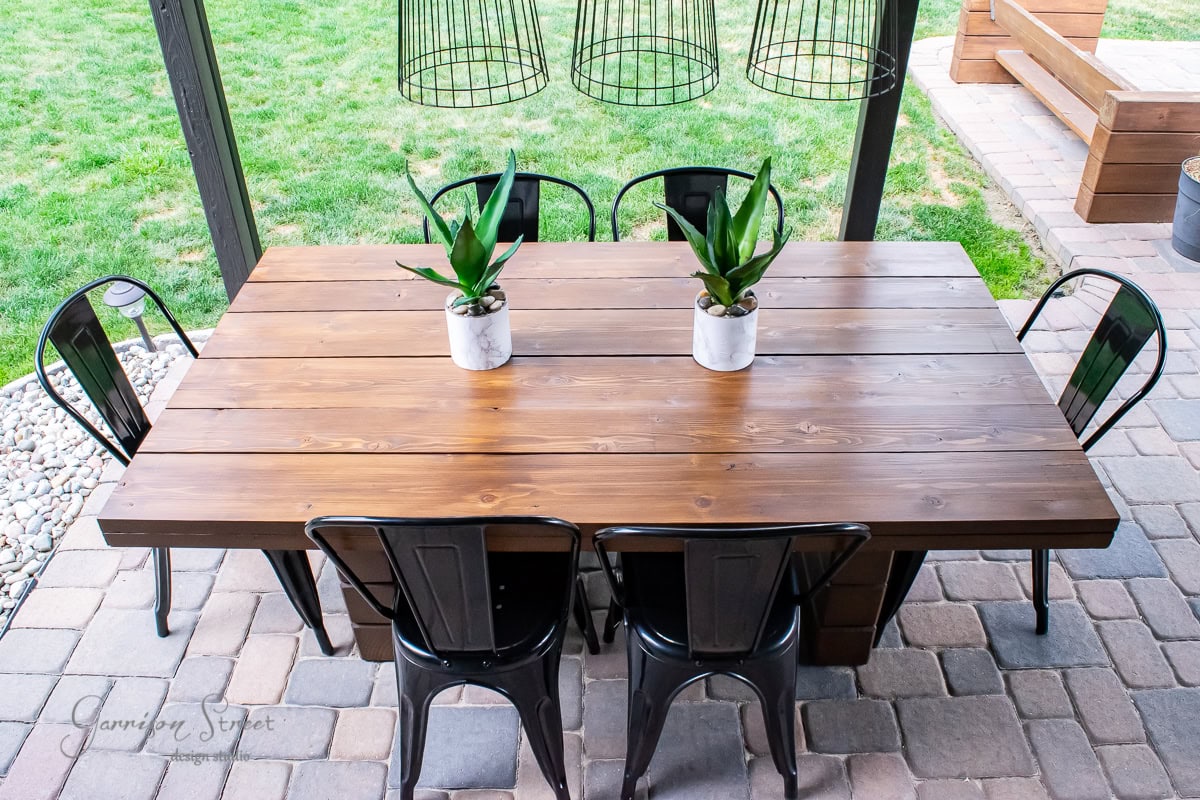

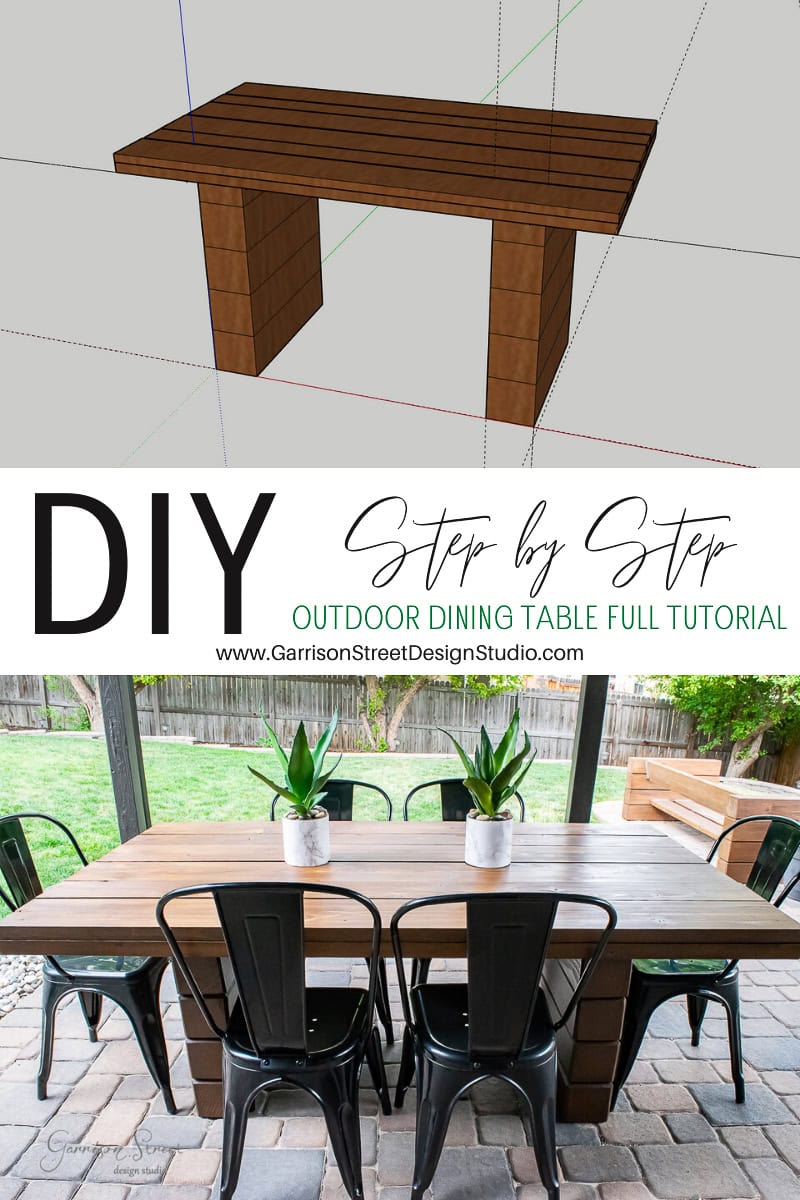

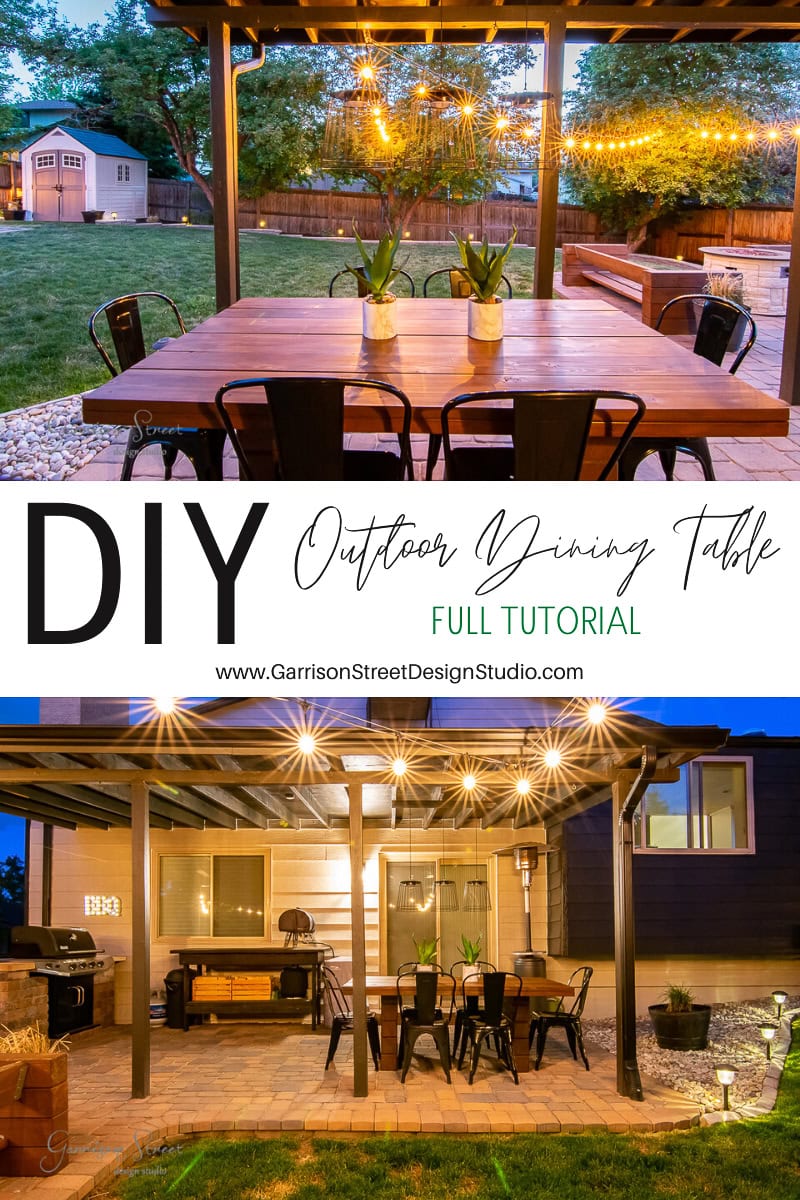

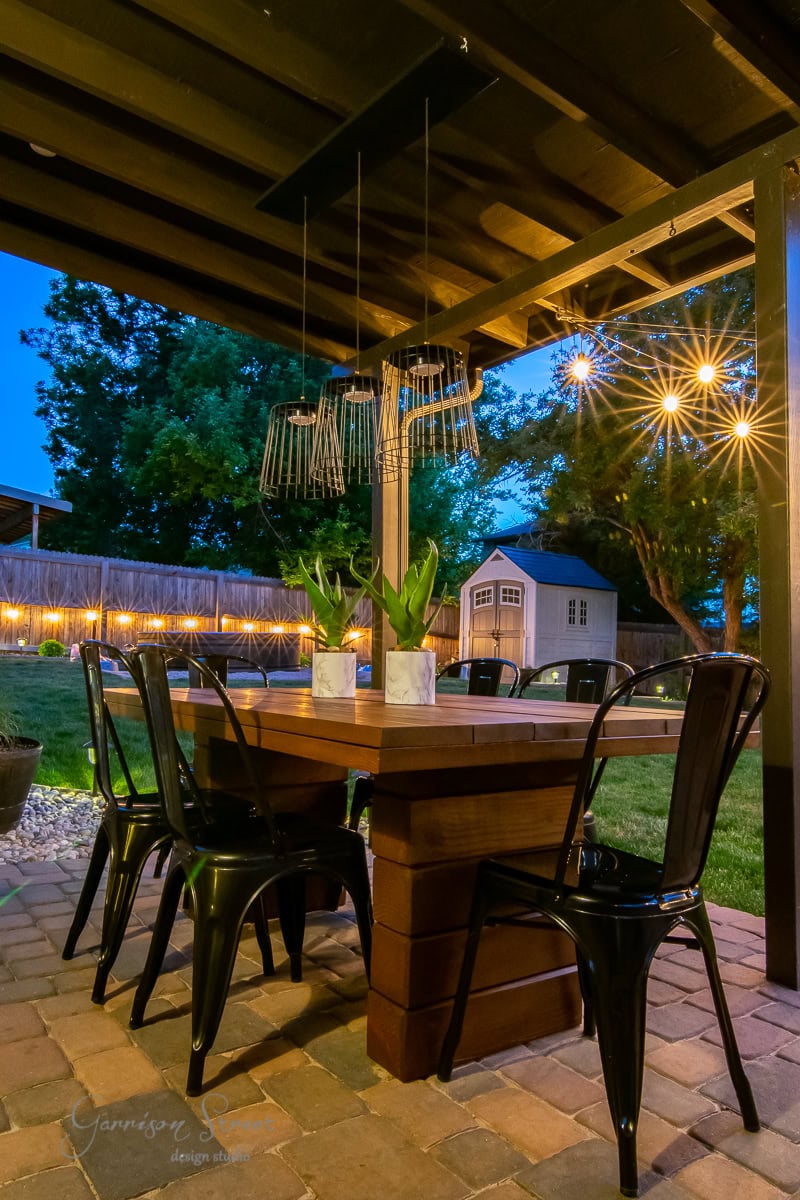

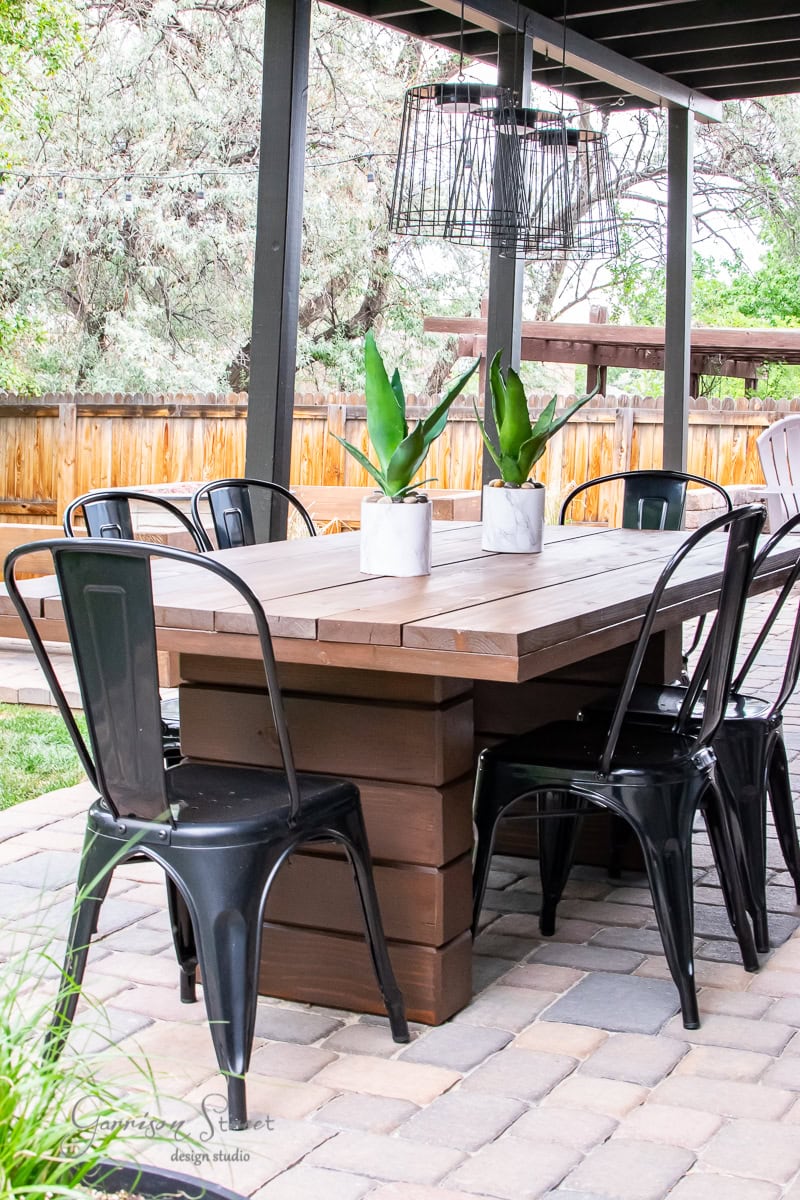

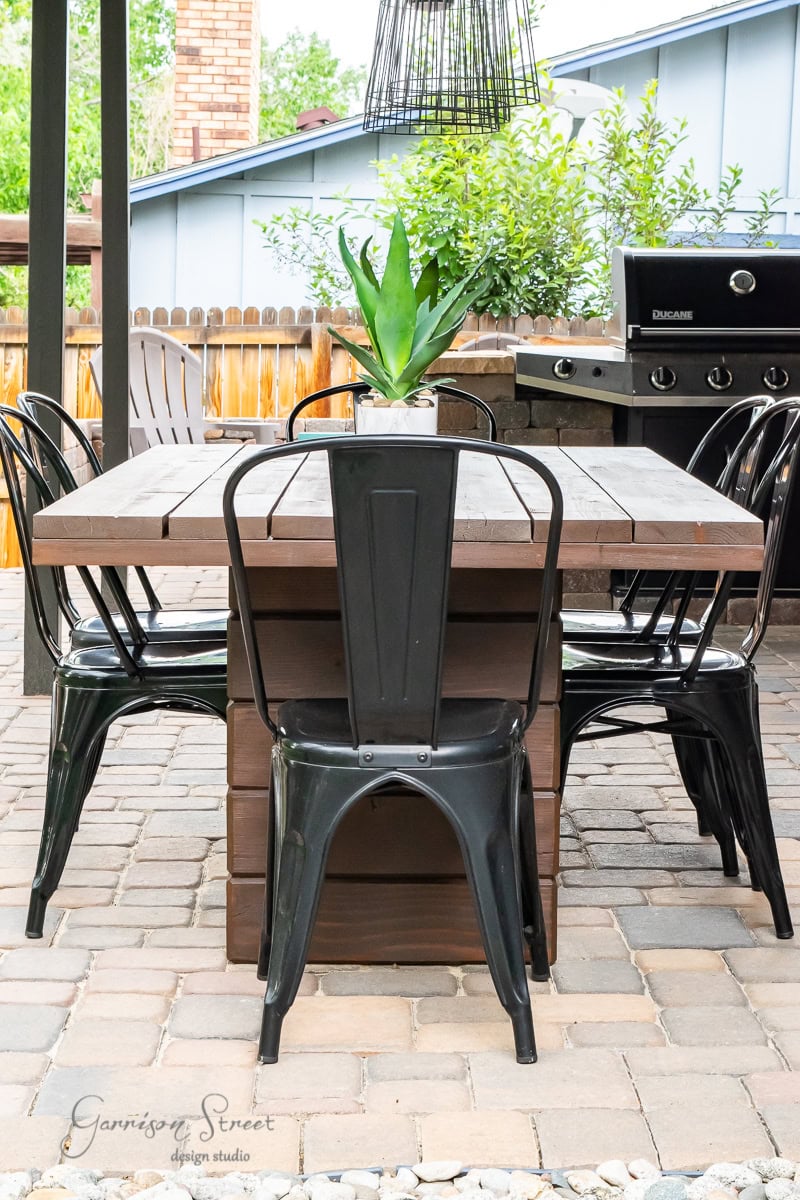

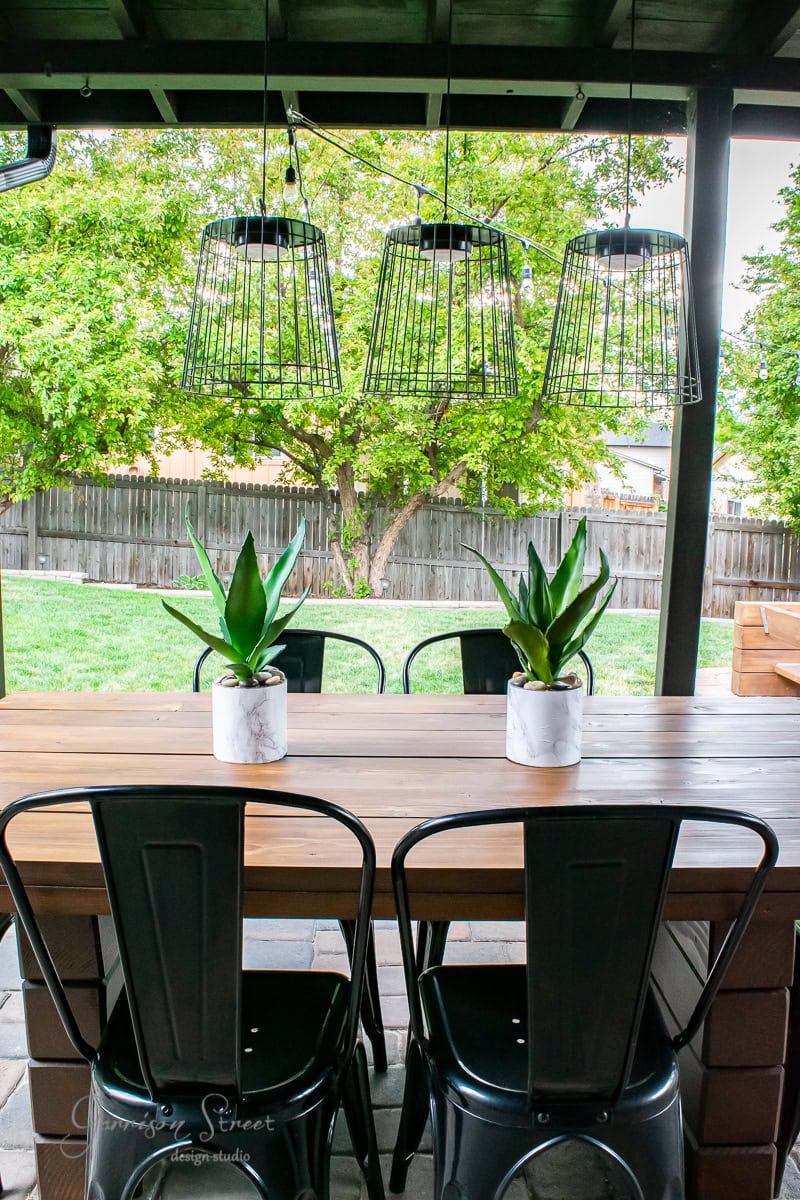

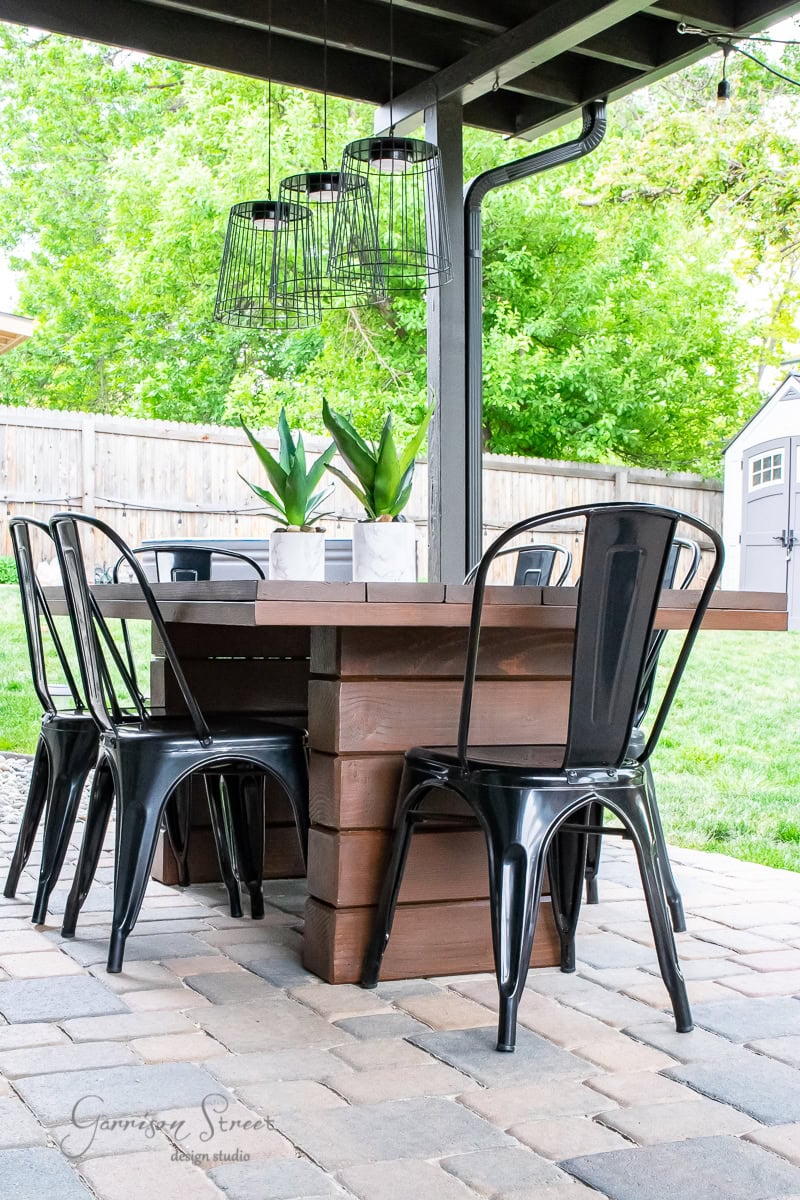

Last step! Sit back, relax, and enjoy your new outdoor dining table! This table is a perfect idea for those just getting into DIY. Using mostly basic tools, you can have a gorgeous outdoor table to enjoy good friends and food!

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Do you have a backyard that needs sprucing up? Check out my other outdoor furniture ideas and outdoor furniture projects for your patio area!

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

This free outdoor table plan is a simple DIY for a beautiful outdoor table but you could also use similar construction to make an outdoor coffee table, a small side table, matching benches, or an indoor dining room table.

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

Garrison Street Design Studio - DIY Outdoor Dining Table Full Tutorial

If you enjoyed my step-by-step instructions for this DIY Outdoor Dining Table Tutorial, please share it on Facebook or hover over an image and save to Pinterest! And if you don’t already follow me on Instagram, Pinterest,  TikTok, or Facebook, I would love for us to be friends!

For more free DIY ideas and projects, sign up for my newsletter so you never miss a project! Plus you will get exclusive access to my free printables!
